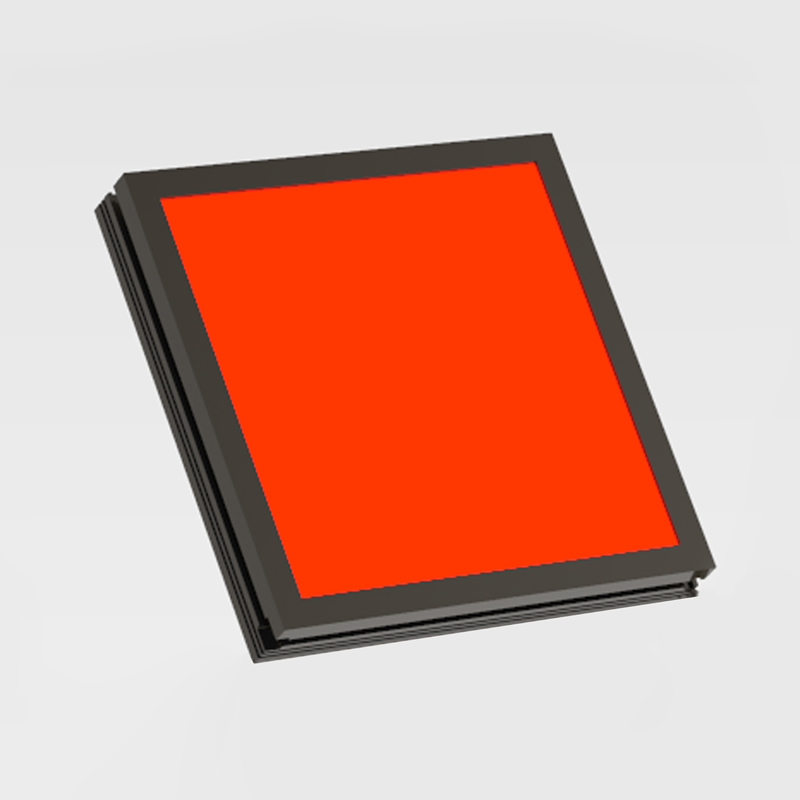

Application areas: Measurement of various dimensions, shape inspection of electronic components and ICs, inspection of film stains, inspection of scratches on transparent objects, etc.
Advantages
• High-brightness LED array arrangement to achieve high-brightness planar lighting
• Large-area uniform light emission, used for perspective contour imaging
| model | Optics | Rated power (W) | Dimensions I×E×D (mm) | Weight (g) | ||||
| color | Working distance (mm) | Light emission L×W (mm) | Voltage (V) | red | White, blue, green | |||
| BLKL-27x27-00 | Red, white, blue, green | 30-100 | 27x27 | twenty four | 2.5 | 2.5 | 41x41x17 | 53 |
| BLKL-43x35-00 | Red, white, blue, green | 30-100 | 43x35 | twenty four | 2.5 | 2.5 | 57x49x17 | 75 |
| BLKL-50x50-00 | Red, white, blue, green | 30-100 | 50x50 | twenty four | 4.3 | 6.5 | 64x64x17 | 85 |
| BLKL-63x60-00 | Red, white, blue, green | 30-100 | 63x60 | twenty four | 5.3 | 8 | 77x74x17 | 130 |
| BLKL-83x75-00 | Red, white, blue, green | 30-100 | 83x75 | twenty four | 6.3 | 9.5 | 97x89x17 | 180 |
| BLKL-100x100-00 | Red, white, blue, green | 30-100 | 100x100 | twenty four | 6.6 | 10 | 114x114x17 | 245 |
| BLKL-140x105-00 | Red, white, blue, green | 30-100 | 140x105 | twenty four | 9.9 | 15 | 154x119x17 | 335 |
| BLKL-160x120-00 | Red, white, blue, green | 30-100 | 160x120 | twenty four | 13.2 | 20 | 174x134x17 | 400 |
| BLKL-200x150-00 | Red, white, blue, green | 30-100 | 200x150 | twenty four | 19.8 | 30 | 214x164x17 | 520 |
| BLKL-211x200-00 | Red, white, blue, green | 30-100 | 211x200 | twenty four | 21.8 | 33 | 225x214x17 | 770 |
| BLKL-224x170-00 | Red, white, blue, green | 30-100 | 224x170 | twenty four | 16.5 | 25 | 238x184x17 | 600 |
The LM150 miniature linear light features an integrated Multi-DriveTM current driver that can operate in either continuous or OverDriveTM mode depending on the wiring configuration selected by the user. This light also features over-current protection and can be enabled/ strobed with either NPN or PNP inputs.
The LWE150 features a stainless-steel enclosure specially designed for the food industry and washdown environments where water and harsh detergents are present. The LWE150 has an integrated Multi-Drive™ constant-current driver that operates continuous operation or in OverDrive™ strobe mode, depending on wiring configuration. NPN or PNP trigger signals can be used to control the pulse of the light.
The ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive™ strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together.
The LHI-DO Series is an OverDriveTM only light source meant to provide external illumination for logistics. This light can be used to create tunnel systems capable of illuminating any package of any size and ensure perfect readability no matter the shape or material. The LHI-DO Series is available in 300- and 600 mm lengths.
Get more light with less power with exceptional energy management
Our specially designed onboard charging capacitors ensure powerful bursts of energy with a low consistent electrical draw.
The Lightgistics Series: Brighter. Faster. Better.
The LHI-DO is part of the Lightgistics Series – machine vision lights made for the logistics industry.
