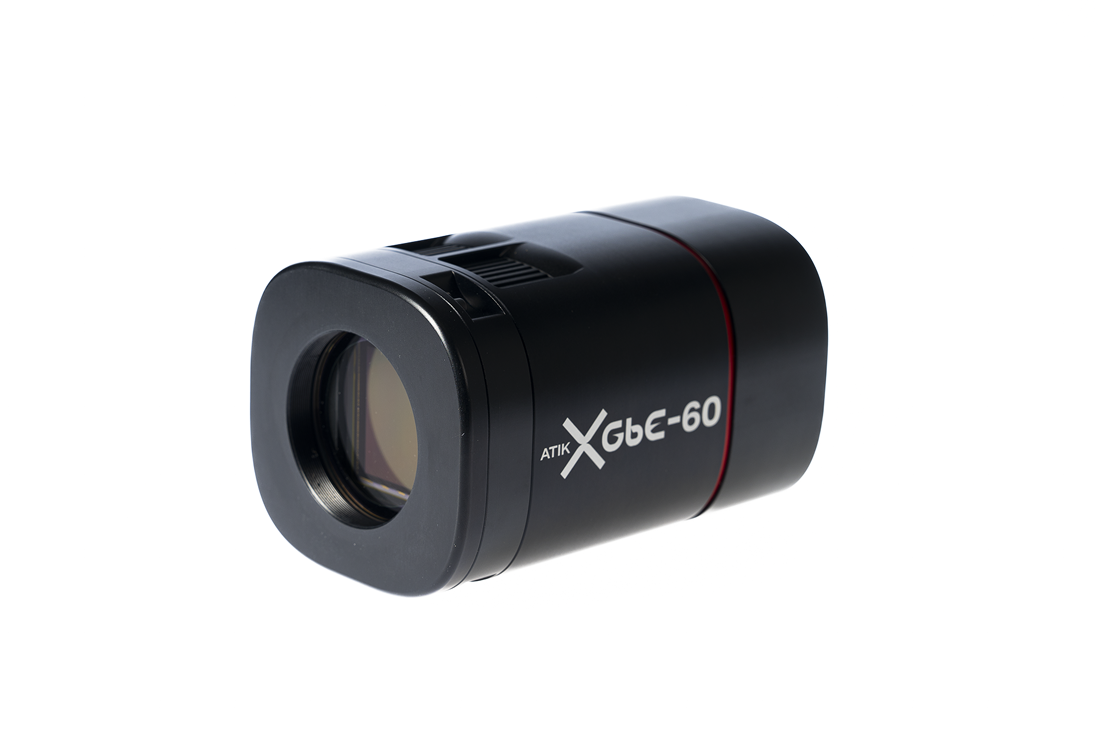

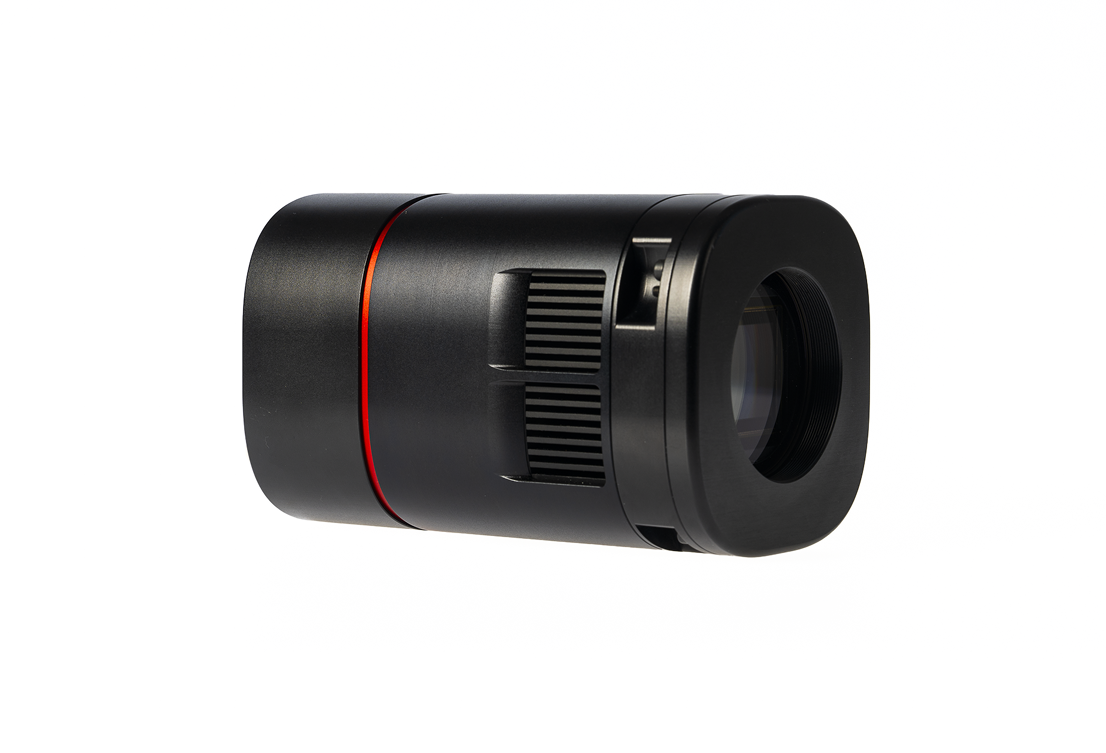

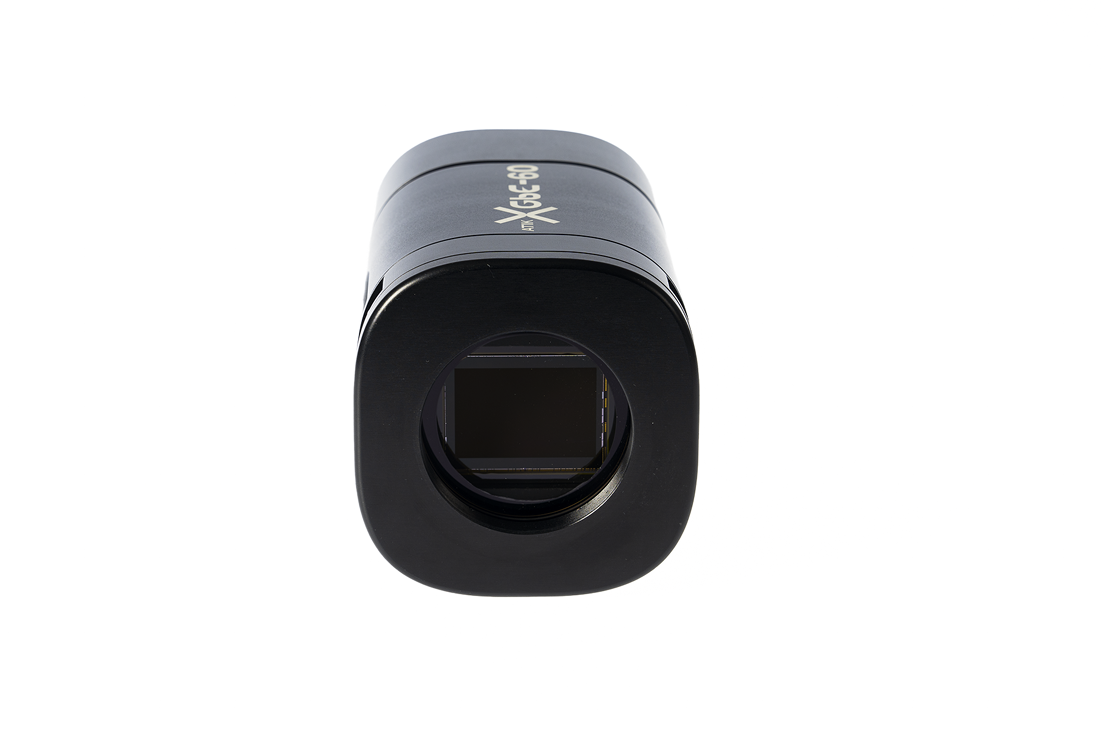

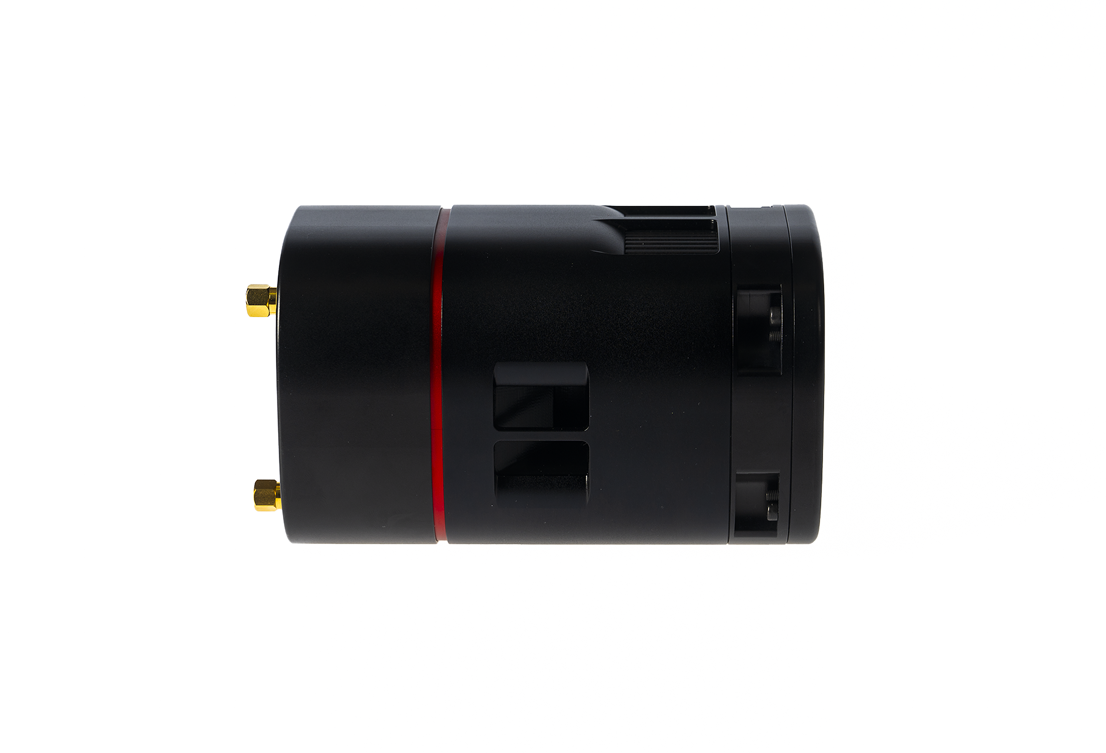

The XGbE-60 is a high-performance network camera built for complex, multi-camera setups. It uses a full-frame Sony IMX455 sensor (61MP) for exceptional image detail, connects natively via 10 GbE Ethernet for fast, long-distance, scalable deployment, and is designed to be straightforward to configure and manage.
| Specification | Details | Specification | Details |
|---|---|---|---|
| Image Sensor | Sony IMX455 CMOS (Mono/Color) | Mount Type | M54 x 0.75 mm |
| Resolution | 9576 x 6380 | ADC | 16-bit |
| Sensor Diagonal | 43.3 mm (36 mm x 24 mm) | Back Focus Distance | 17.5 mm ±0.5 mm (9 mm ±0.5 mm without levelling plate) |
| Pixel Size | 3.76 μm | Reading Mode | Electronic Rolling Shutter |
| Full Well Capacity | 51,000 e⁻ | Exposure Range | 0.001s to 24 hours |
| Read Noise | 1.4 e⁻ (High Gain) / 3.6 e⁻ (Low Gain) | Frame Rate | 4 FPS |
| Dark Current | 0.0002 e⁻/s/px at -15°C | Power Supply | 12VDC 5A |
| Cooling Capacity | 35°C below ambient (tested at 25°C, 50% humidity, non-condensing) |
Features:
● Compact housing
● Aptina CMOS sensors
● Sony CMOS and CCD sensors
Features:
● Compatible to UVC and USB3 Vision
● Sony Pregius and Pregius S CMOS sensors
● Onboard image pre-processing
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● Single-board cameras
