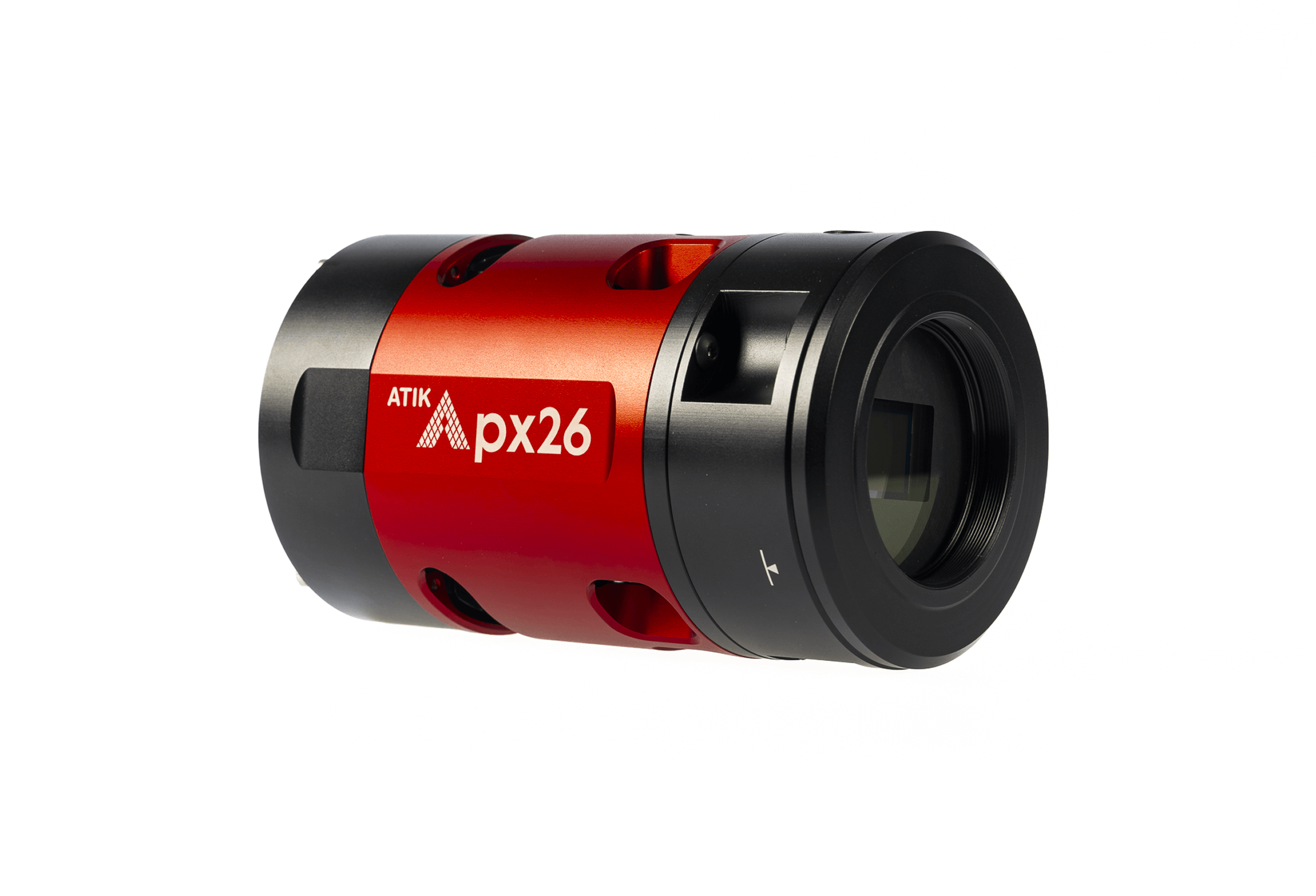

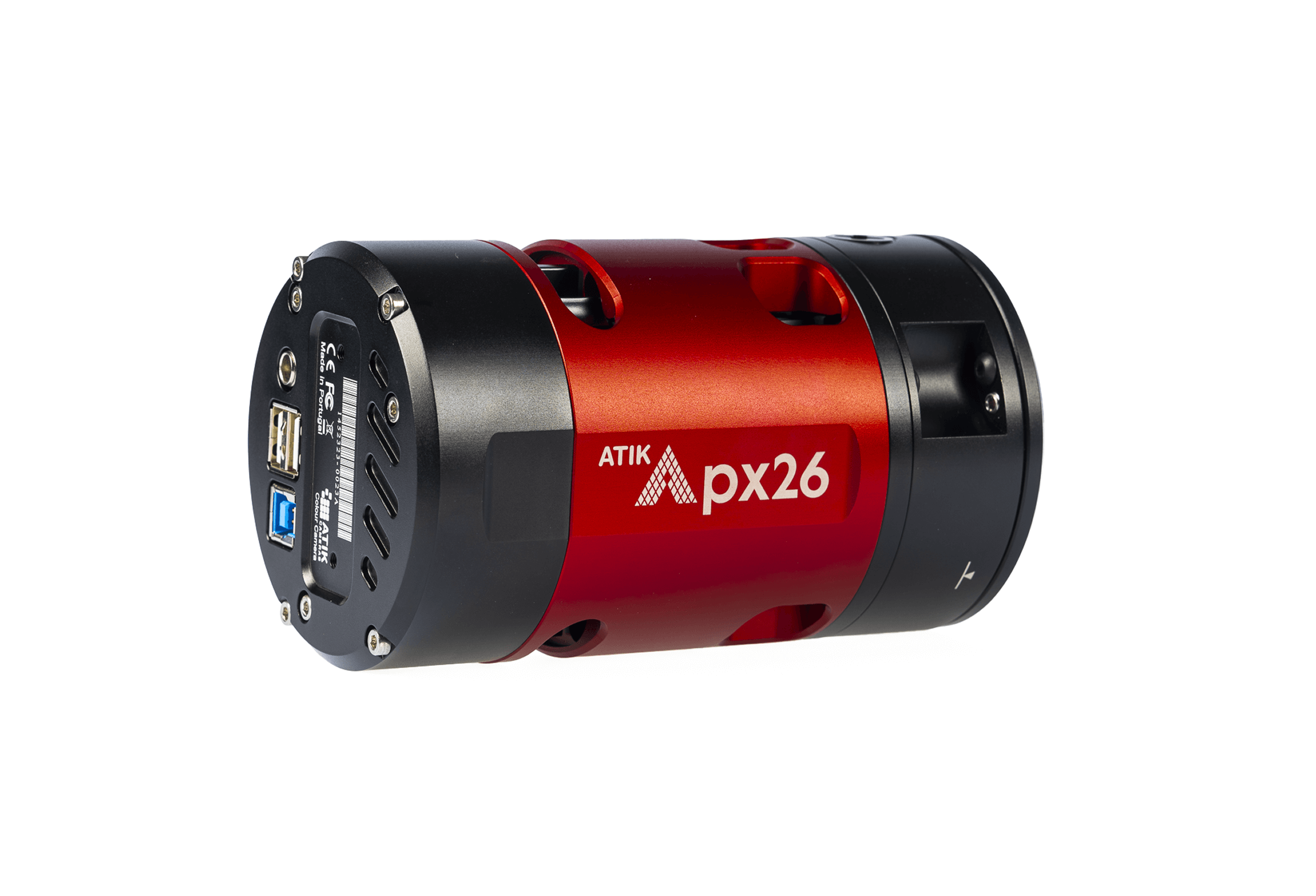

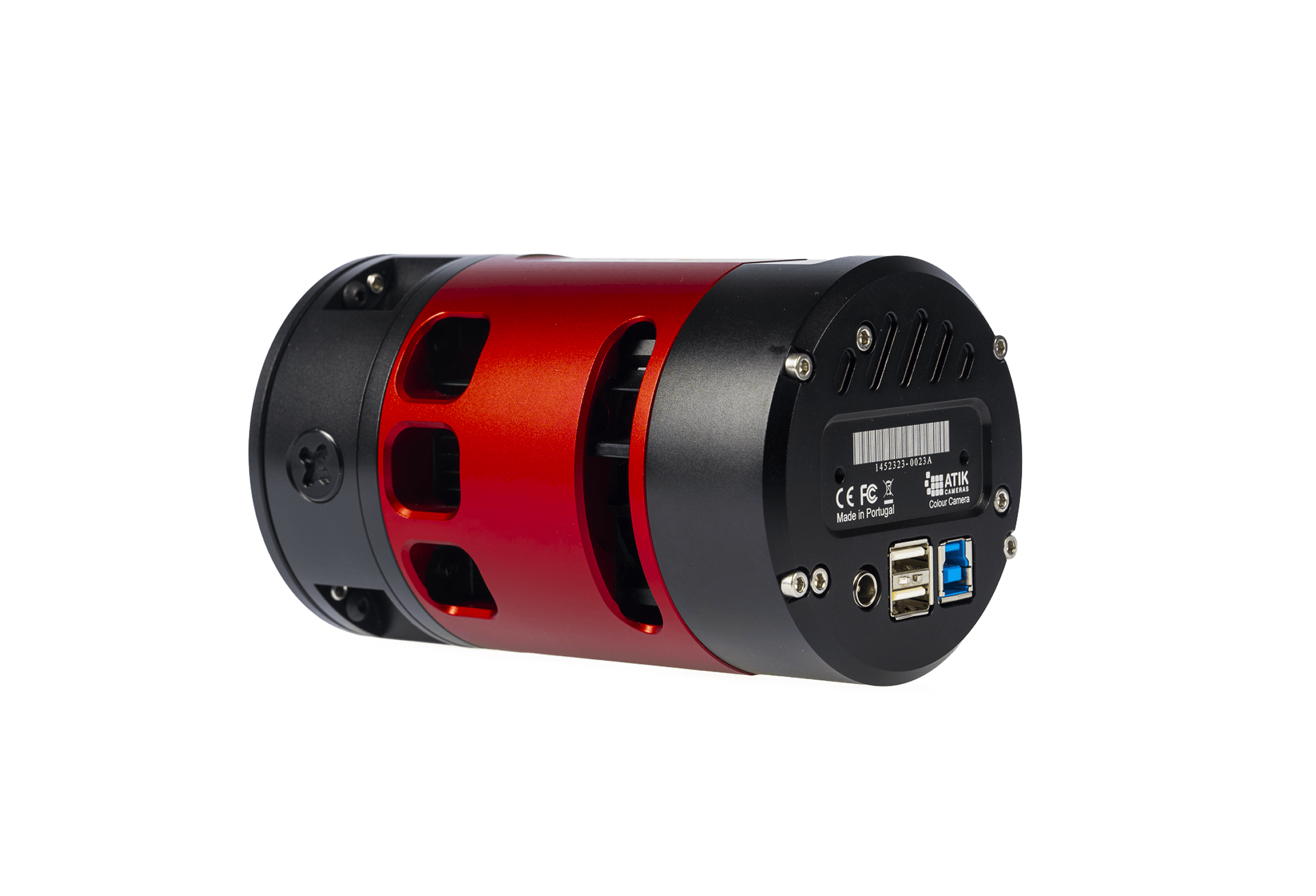

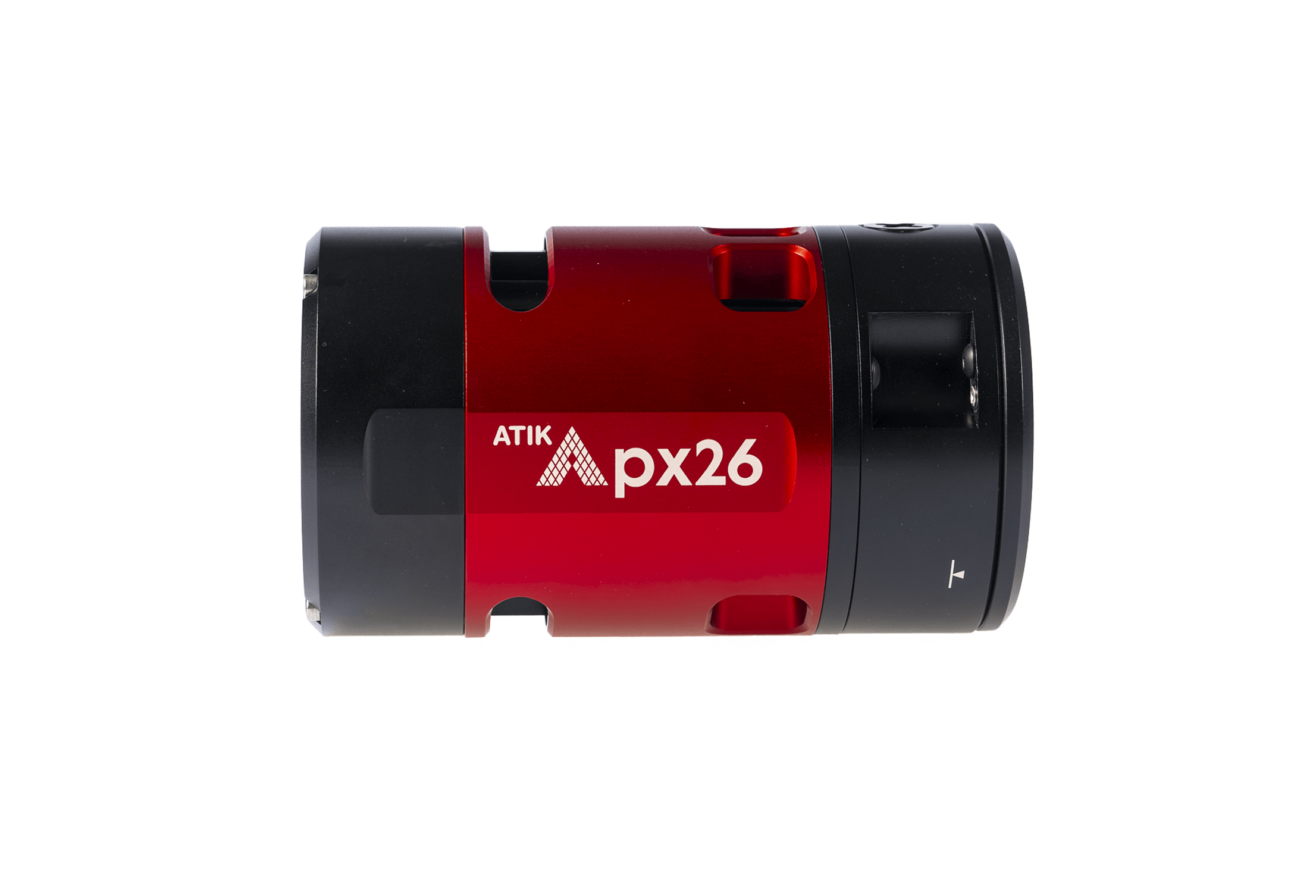

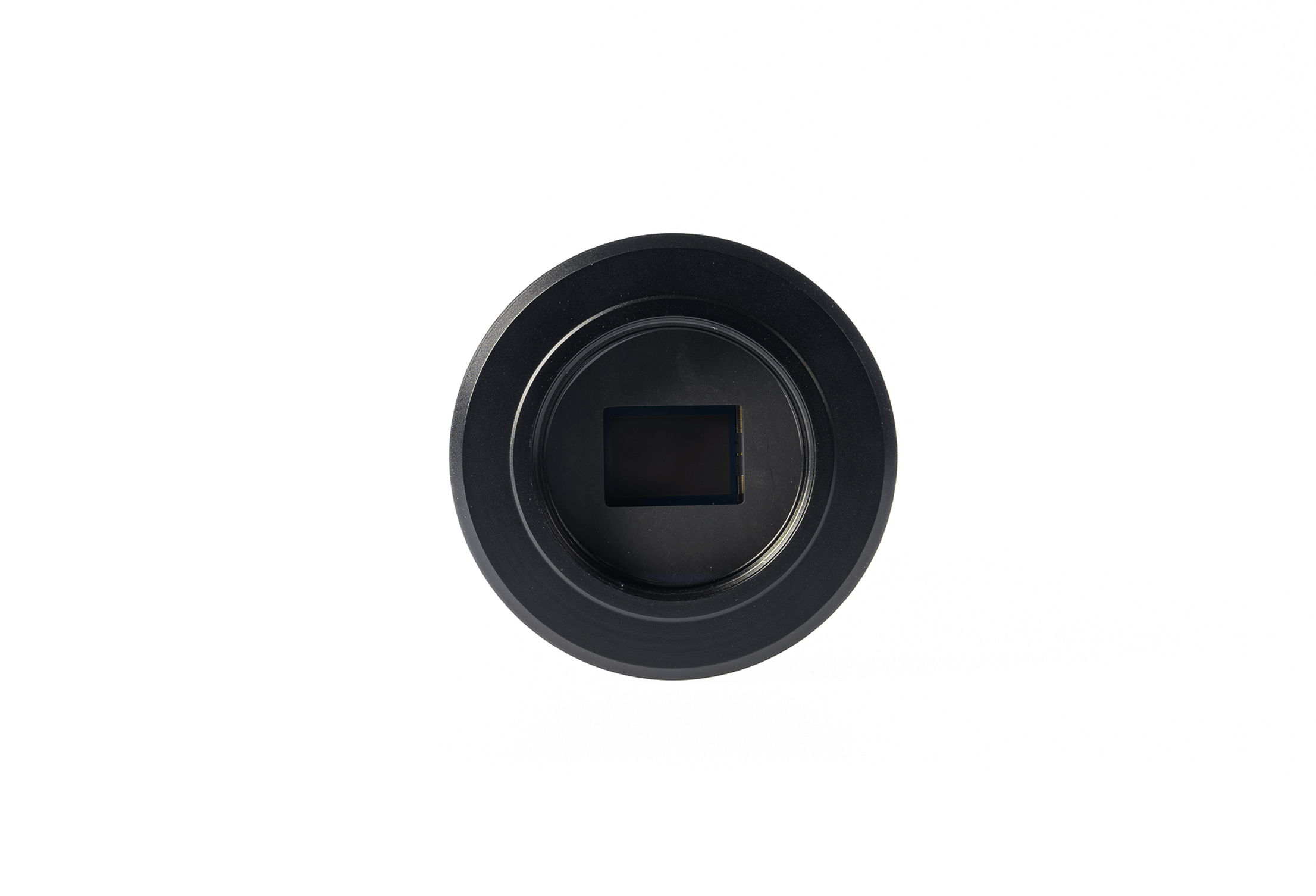

| Specification | Details | Specification | Details |
|---|---|---|---|
| Image Sensor | Sony IMX571 CMOS (Mono/Color) | Mount Type | M54 x 0.75 |
| Resolution | 6252 x 4176 | ADC | 16-bit |
| Sensor Diagonal | 28.3 mm (23.5 mm x 15.7 mm) | Back Focus Distance | 17.5 mm ±0.5 mm (10.5 mm ±0.5 mm without levelling plate) |
| Pixel Size | 3.76 μm | Reading Mode | Electronic Rolling Shutter |
| Full Well Capacity | 51,000 e⁻ | Exposure Range | 0.001s to 24 hours |
| Read Noise | 1.2 e⁻ (High Gain) / 3.6 e⁻ (Low Gain) | Frame Rate | 4 FPS |
| Dark Current | 0.0008 e⁻/s/px at -15°C | Maximum Current Consumption | 2.4 A |
| Cooling Capacity | 35°C below ambient | Power Supply | 12VDC 5A |
![SVS-VISTEK HR [CoaXPress]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)
Latest Technology And Fast Data Transfer Speeds
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
CoaXPress was developed to cope with the increasing bandwidths of new sensor generations. Up to 6.25 GBit/s or 12.5 GBit/s can be transmitted per line. SVS-Vistek supplies CoaXPress cameras with four CoaXPress-6 or CoaXPress-12 lines and thus provides a data bandwidth of 25 GBit/s or 50 GBit/s.
The HR series with CoaXPress is equipped with modern, fast and high-resolution CMOS sensors. With outstanding frame rates, the HR offers a wide range of industrial hardware and software features.
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
With its thin, long cables and extremely high bandwidth, CoaXPress offers the perfect interface for high-resolution and very fast CMOS sensors
Demanding applications in quality assurance and plant engineering benefit from this combination of maximum resolution and maximum speed.
Key Features:
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
Machine vision and deep learning edge IoT device
Matrox® Iris GTX is the next evolution of smart cameras from Matrox Imaging. Offering higher resolution sensors and substantially more processing power than its immediate predecessor, Matrox Iris GTX provides exceptional performance for a compact all-in-one vision system. Paired with flowchart-based Matrox Design Assistant® X1 software, engineers and technicians can quickly configure and deploy machine vision to the Matrox Iris GTX smart cameras. Video capture, analysis, classification, location, measurement, reading, verification, communication, and I/O operations—as well as a web-based operator interface—are all set up within the same software. Matrox Iris GTX smart cameras are model edge IoT devices, performing data acquisition and analytics, and providing results nearest to the manufacturing
