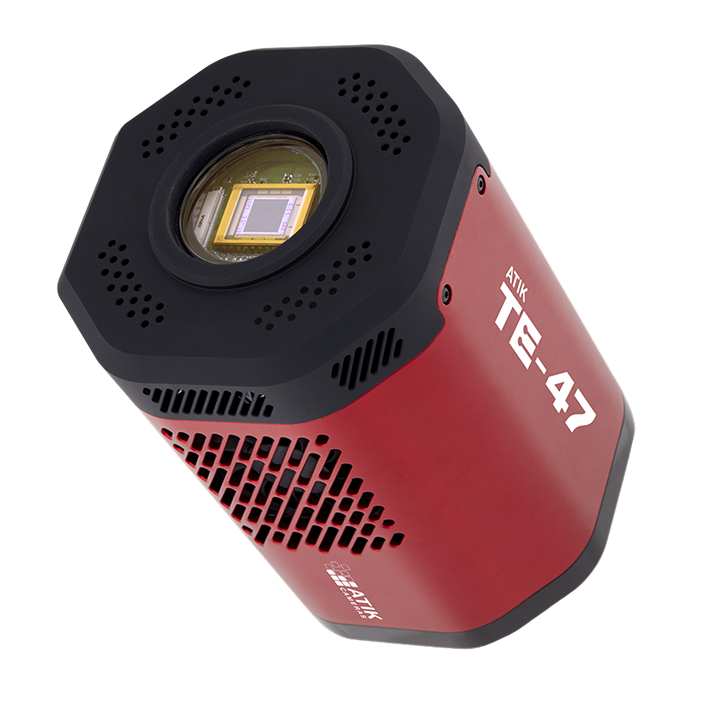

The ATIK TE-47 is a compact, research-grade CCD camera built around the proven e2v CCD 47-10 sensor, delivering uniform imaging performance across a manageable field of view for researchers and engineers.
Performance Specifications
– Resolution: 1 megapixel (1024 × 1024 pixels)
– Sensor size: 13.3 × 13.3 mm (square format)
– Pixel size: 13 μm
– Full-well capacity: 100,000 e⁻ (deep dynamic range)
– Thermoelectric cooling: 40°C below ambient

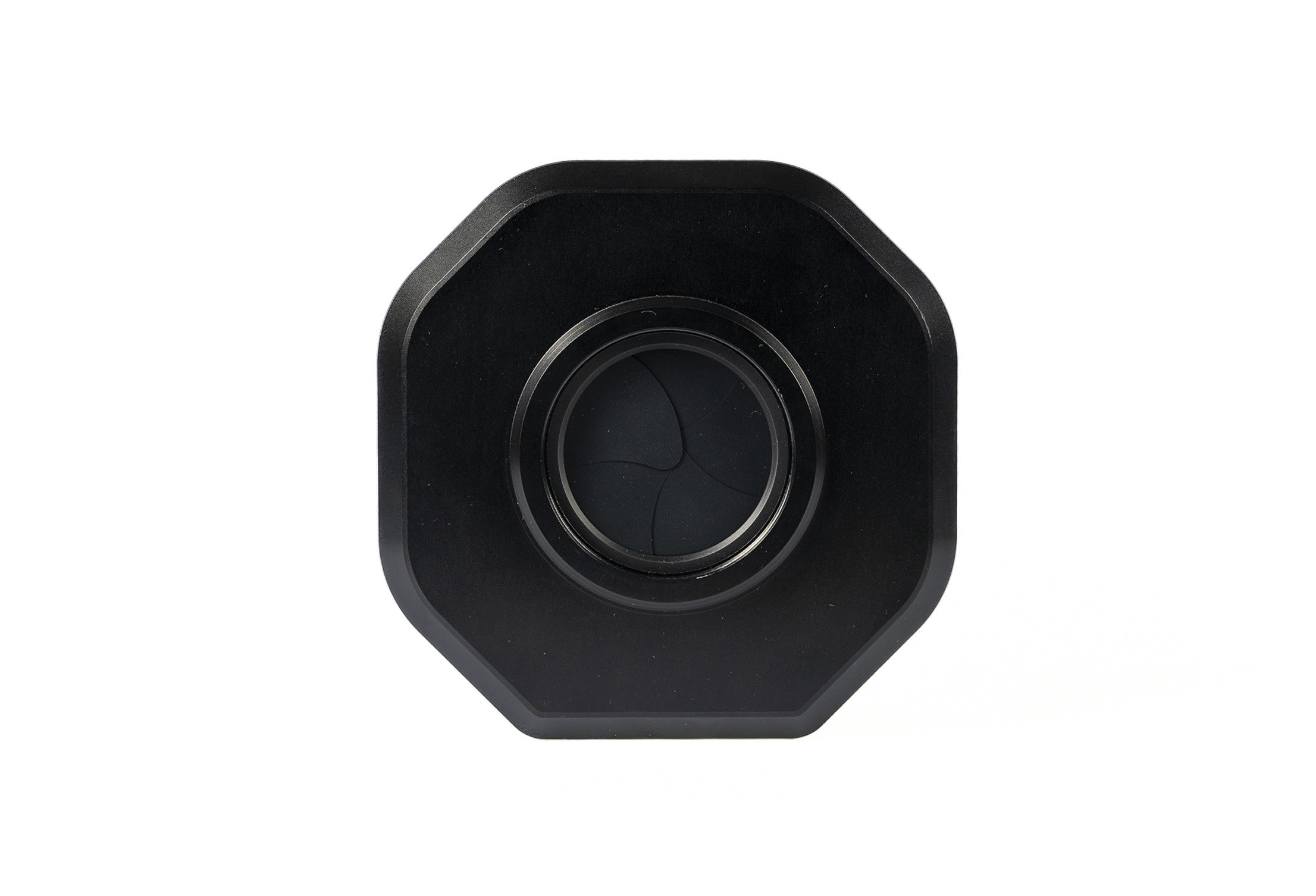

– Shutter: Optional physical shutter for precise frame control
Key Features
– CCD sensitivity with exceptional uniformity and image stability across temperature ranges
– Deep dynamic range captures both faint details and bright structures without saturation, ideal for high-contrast scenarios
– Hardware shutter enables temporal control superior to modern CMOS sensors, minimizing motion artifacts and supporting synchronized multi-camera systems
– Efficient, low-maintenance TE cooling—no additional infrastructure required
– Consistent performance across long sessions with stability for repeatable results
– Suitable for laboratory and field use
– Supports calibration workflows including dark frame subtraction
| Specification | Details | Specification | Details |
|---|---|---|---|

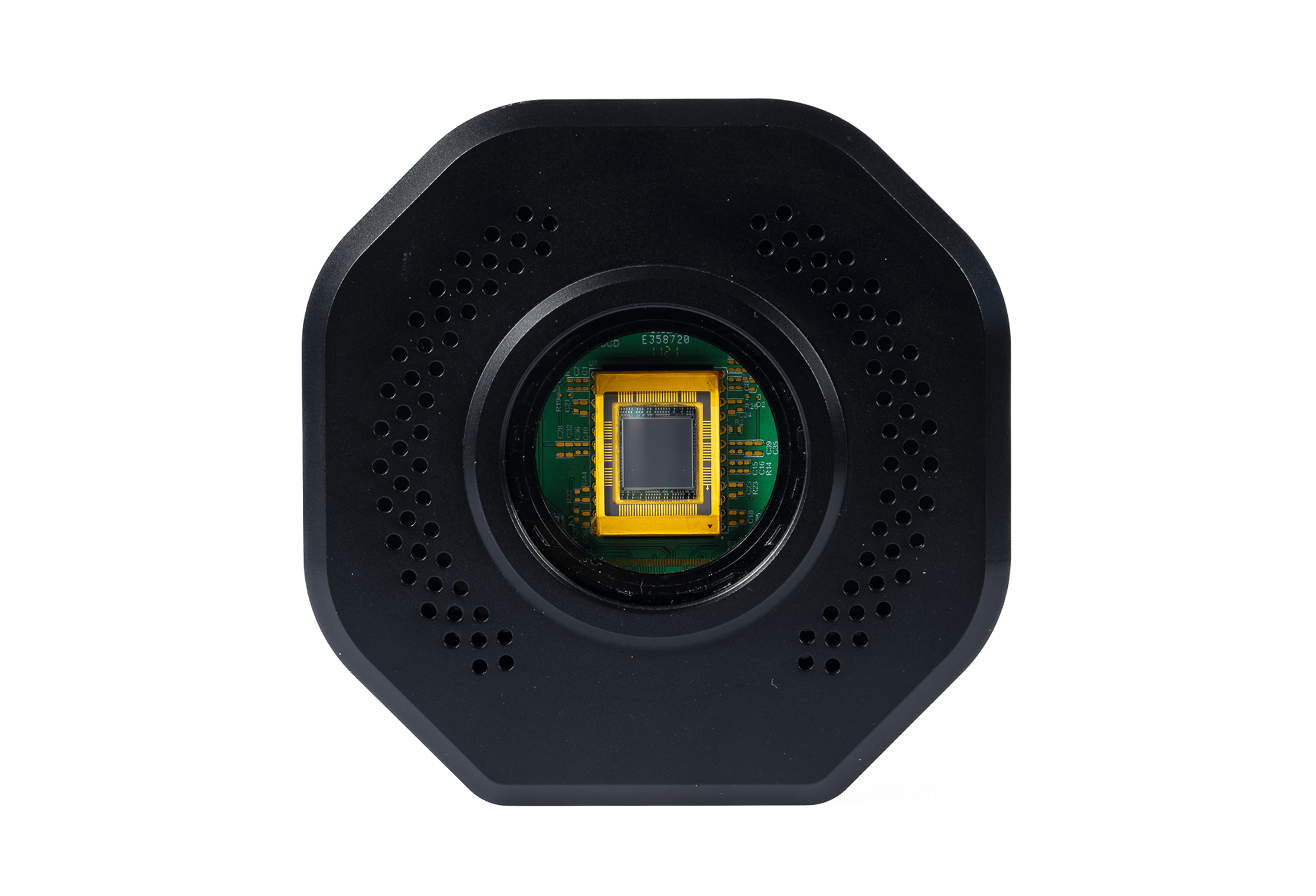

| Image Sensor | e2v CCD 47-10 (front or back illuminated) | Mount Type | M54 x 0.75 |
| Resolution | 1024 x 1024 | ADC | 16-bit |
| Sensor Diagonal | 18.81 mm (13.3 mm x 13.3 mm) | Back Focus Distance | 16.9 mm ±0.5 mm (without shutter) / 21.9 mm ±0.5 mm (with shutter) |
| Pixel Size | 13 μm | Reading Mode | Full frame CCD with optional physical shutter |
| Full Well Capacity | 100,000 e⁻ | Exposure Range | 0.01s to 24 hours |
| Read Noise | <8 e⁻ | Frame Rate | 1.554 (preview) / 0.186 (low noise) / 0.094 (lowest noise) FPS |
| Dark Current | 0.0005 e⁻/p/s at -20°C | Power Supply | 12VDC 12.5A |
| Cooling Capacity | 40°C below ambient |
