ATIK CAMERAS [ ChemiMOS 9]

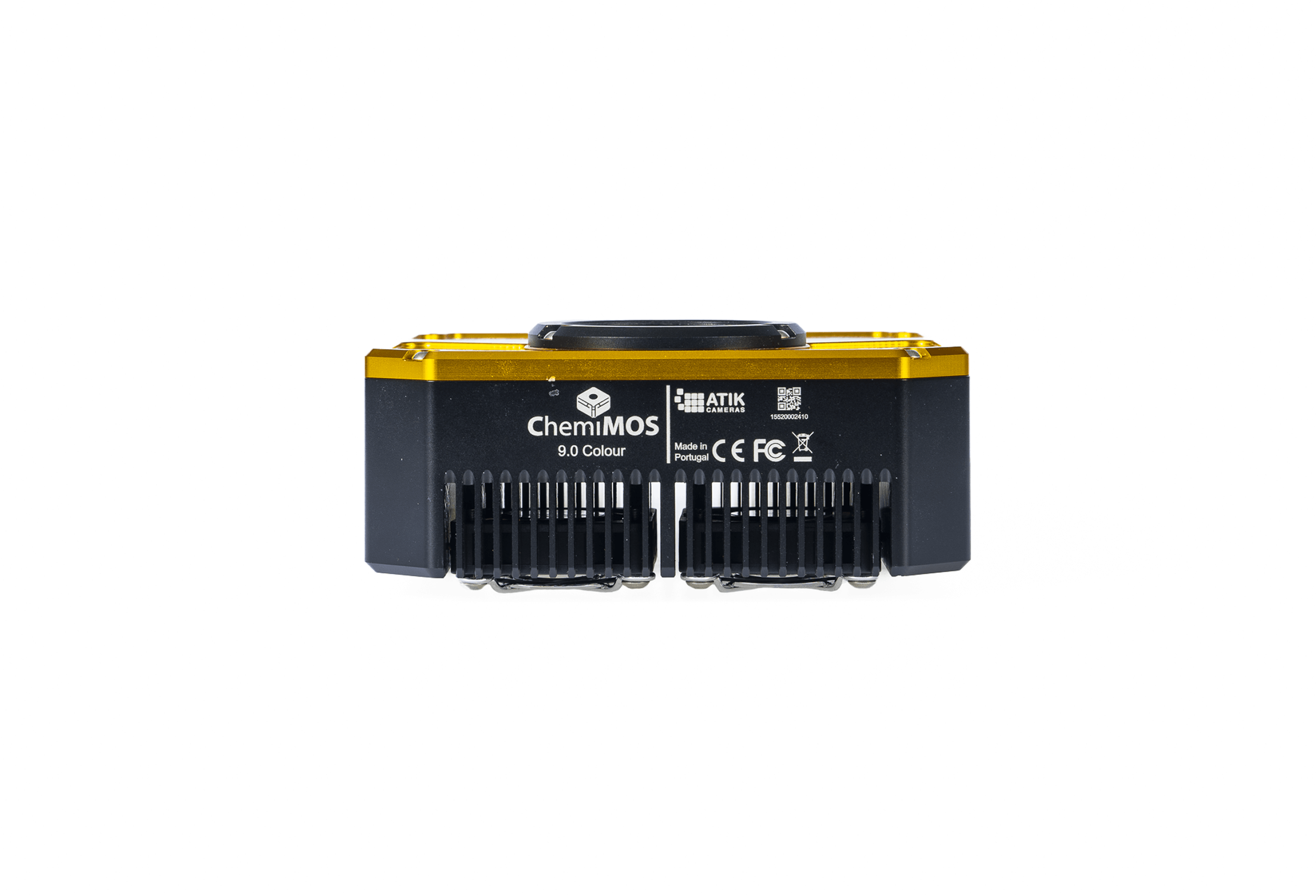

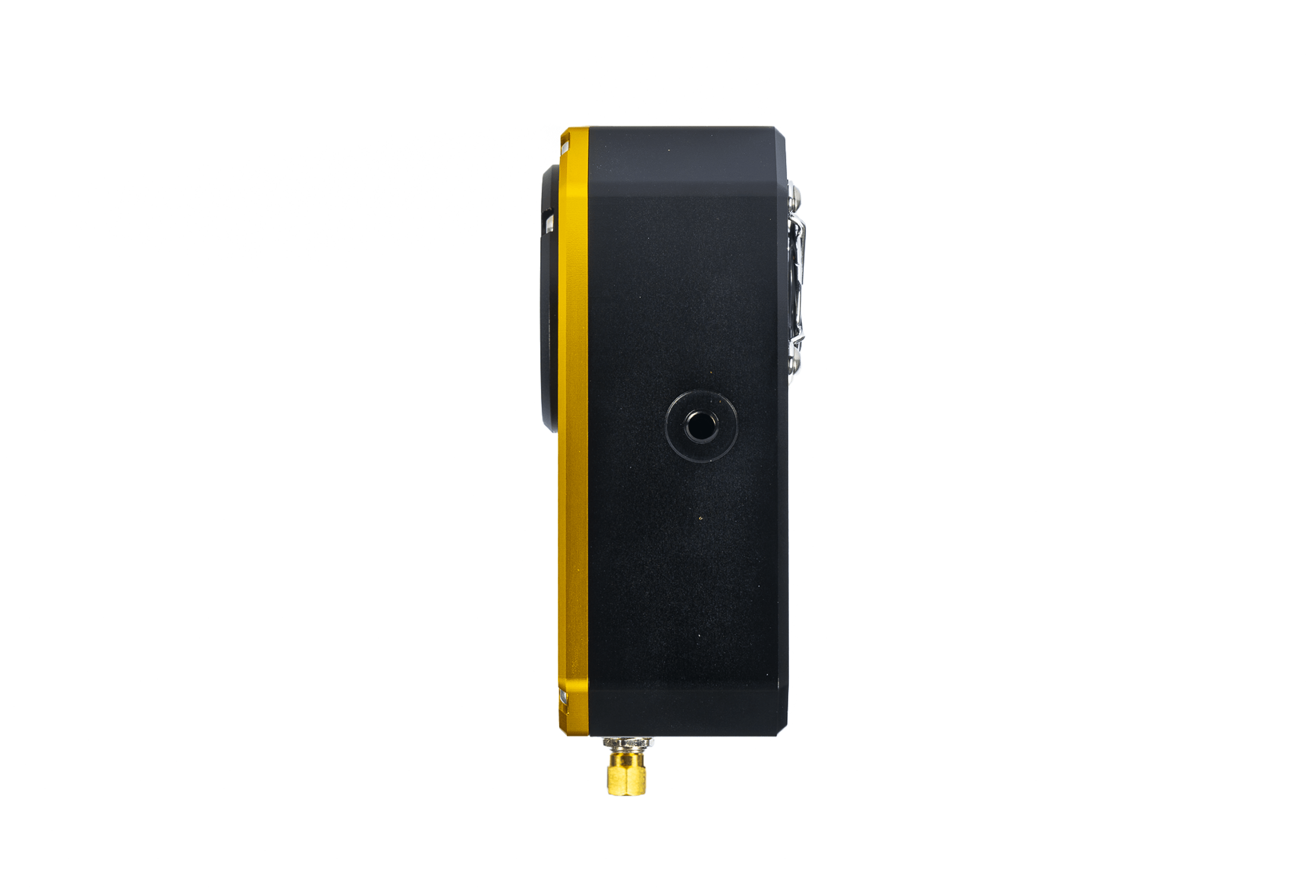

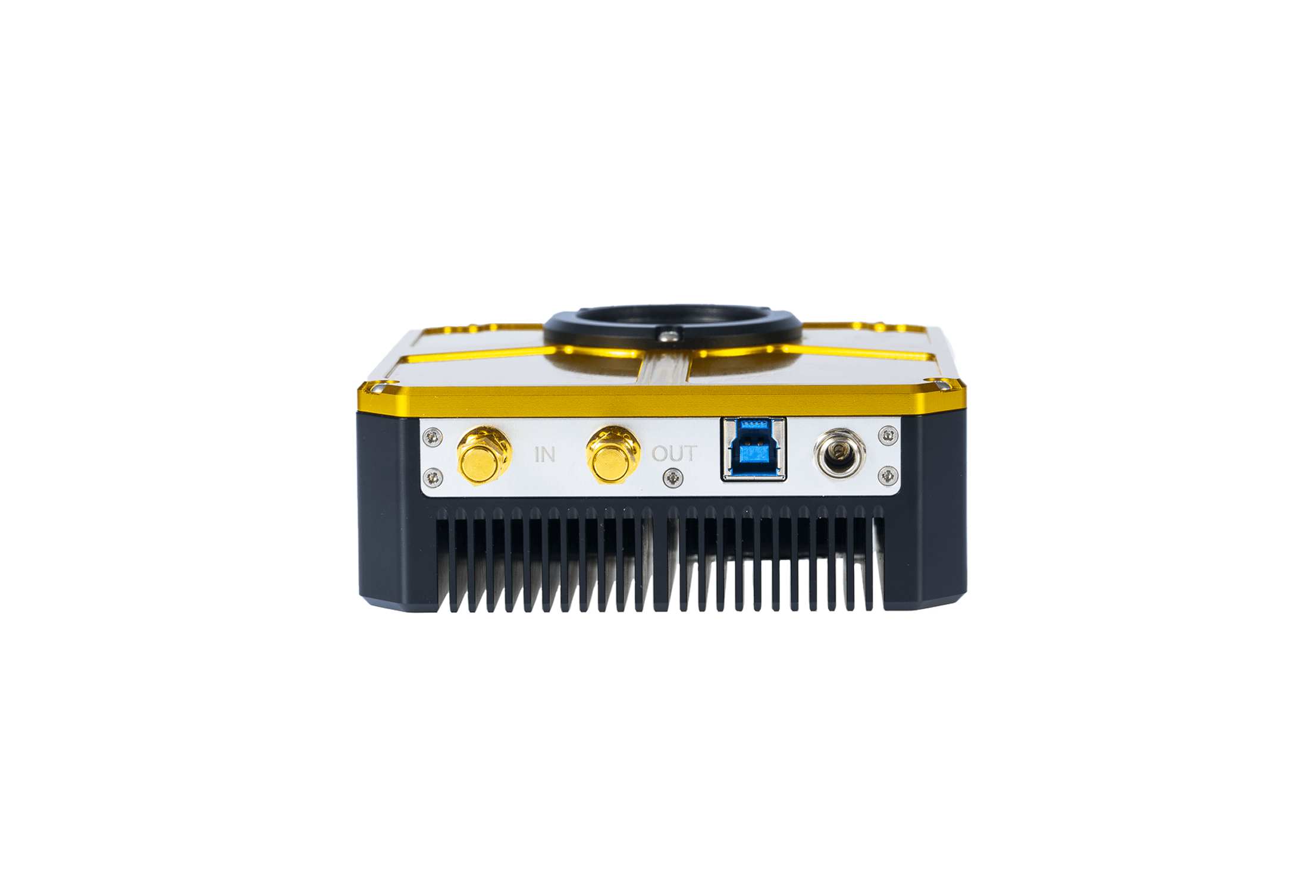

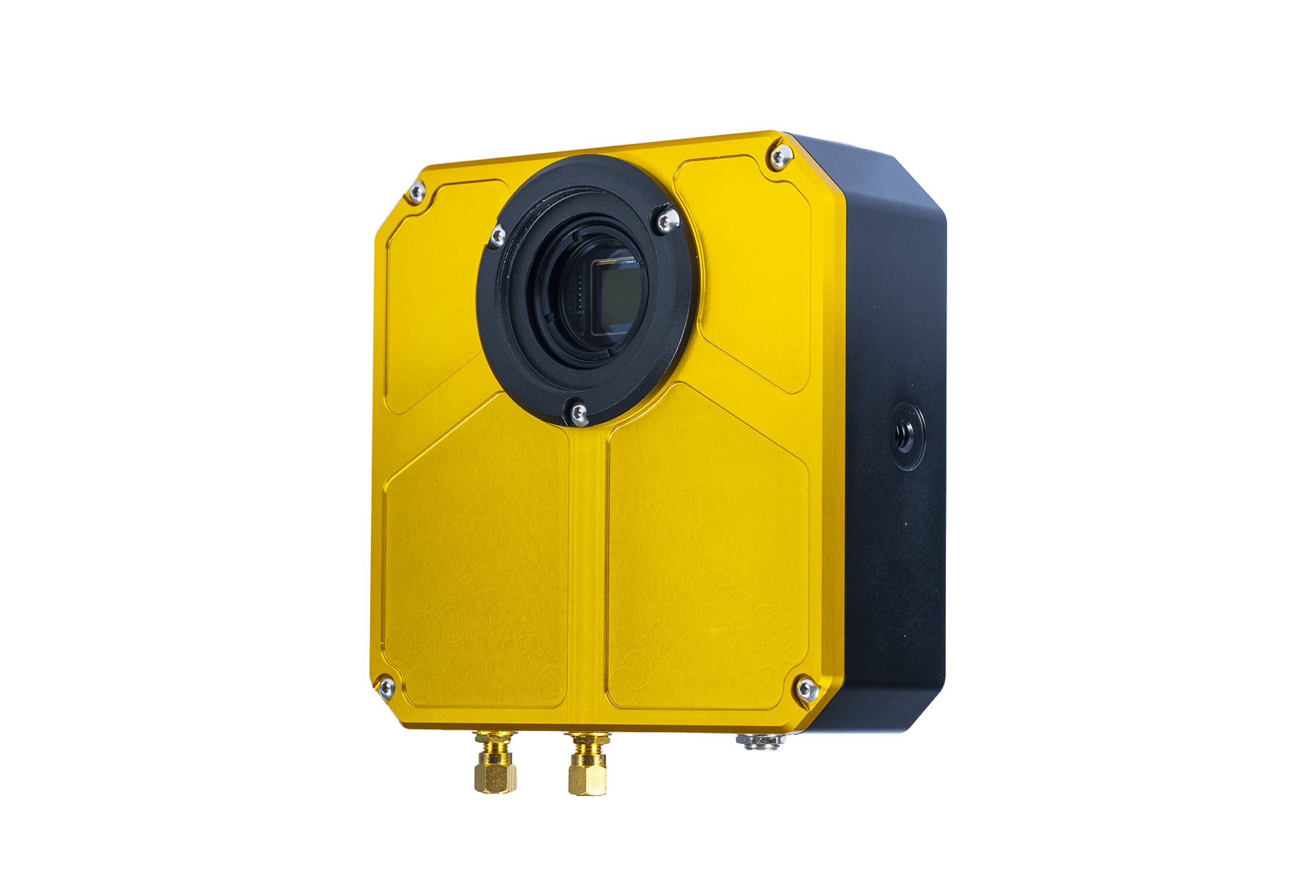

The ChemiMOS 9 is a compact scientific CMOS camera built around Sony’s IMX533 sensor (mono or color), featuring a 3008 × 3008 square format with 3.76 μm pixels and an 11.3 × 11.3 mm effective imaging area (15.968 mm diagonal). It is available in two configurations: a standard slim model for space-constrained instruments, and the ChemiMOS 9FW with an integrated motorized filter wheel for multi-channel fluorescence or multispectral imaging without external opto-mechanics.

Noise Performance

Read noise: 1.6 e⁻ (High Gain Mode) / 3.6 e⁻ (Low Gain Mode)
Zero amp glow architecture
Dark current: 0.0005 e⁻/px/s at −20°C

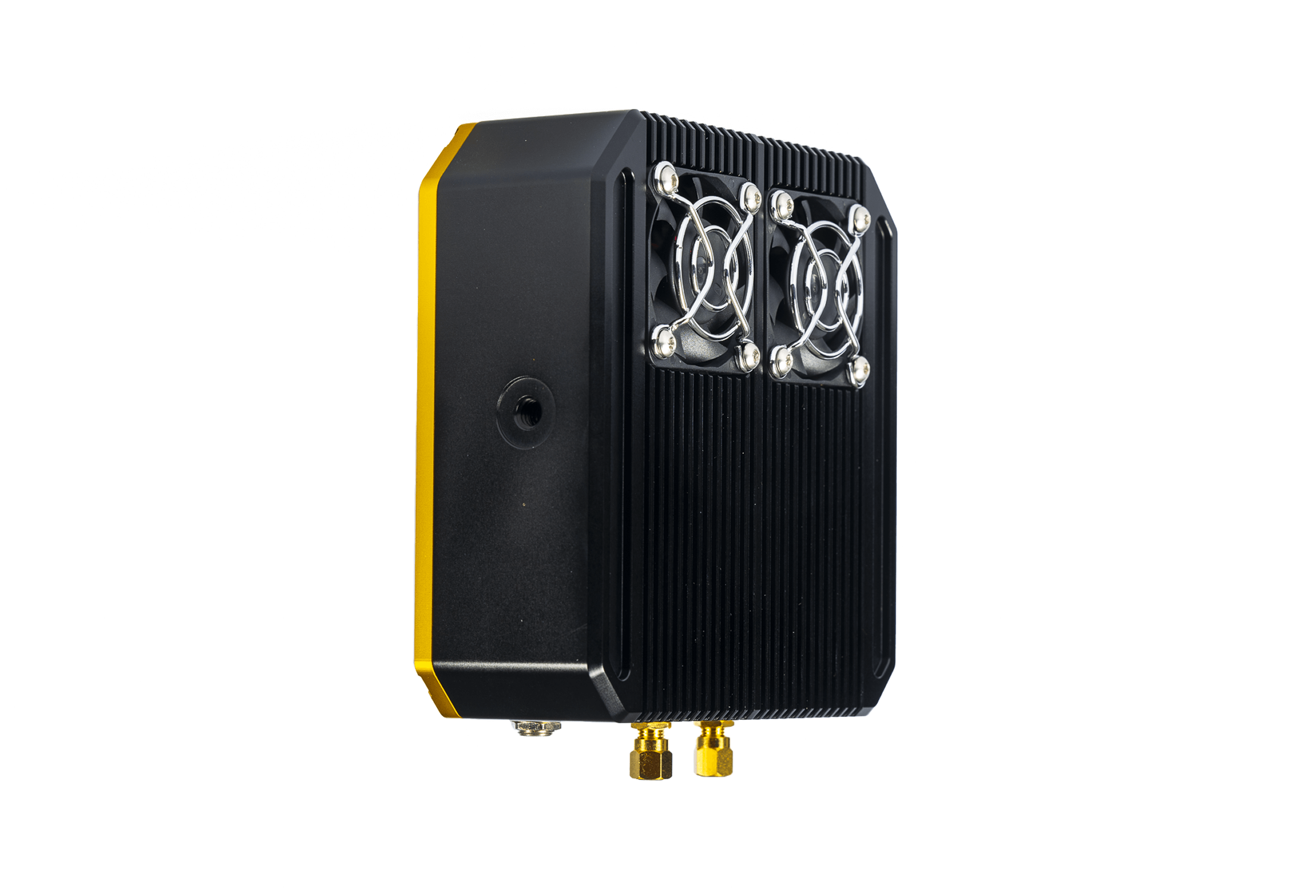

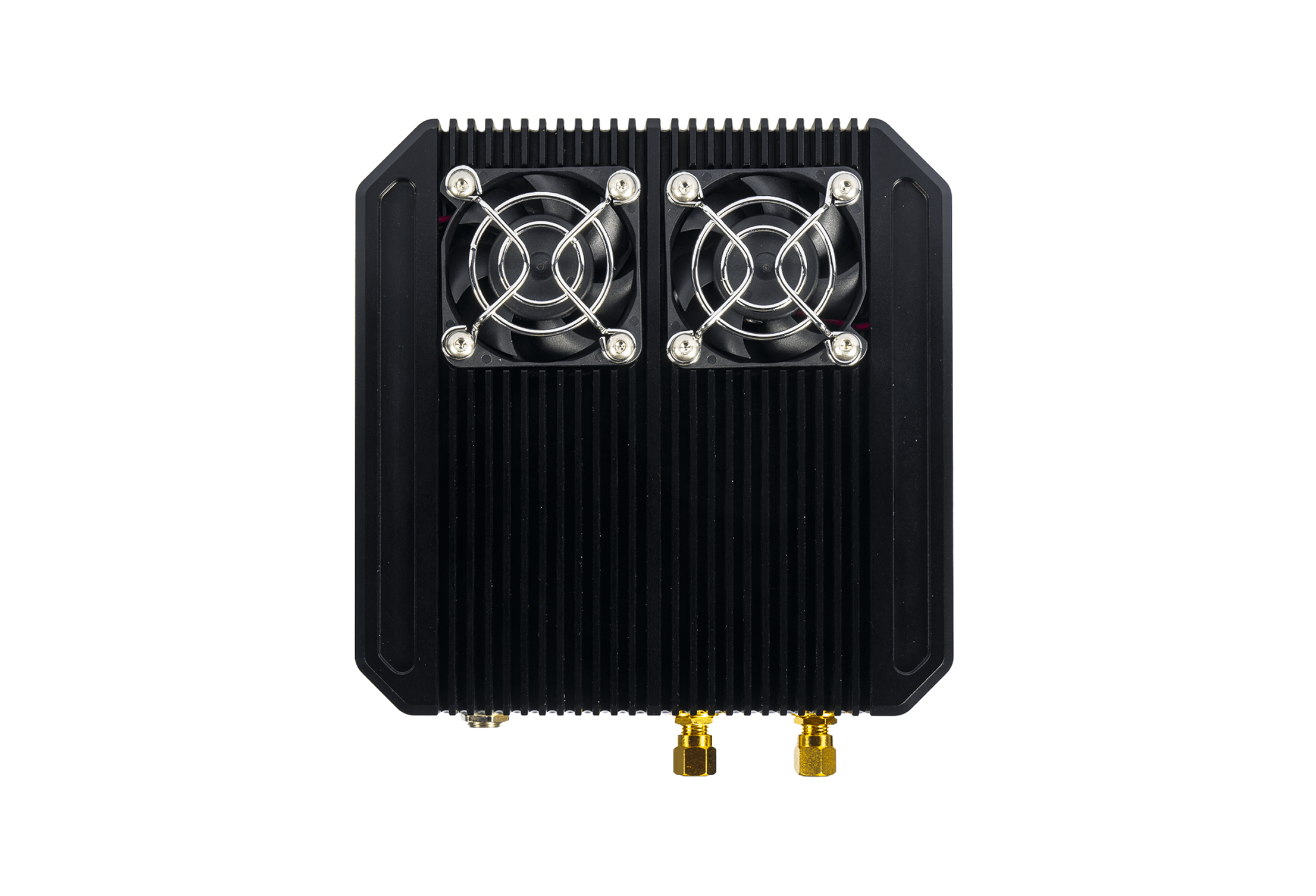

Thermoelectric cooling: 35°C below ambient

Imaging Specifications

Full-well capacity: >50,000 e⁻
Dynamic range: Deep, supporting both bright structures and dim details
ADC: 14-bit with 16-bit output mode
Exposure range: 0.001 s to 24 hours (electronic rolling shutter)
Frame rate: 12 FPS full-frame

Specifications for ChemiMOS 9

Specification	ChemiMOS 9	ChemiMOS 9FW	ChemiMOS 26
Image Sensor	Sony IMX533 CMOS (Mono/Color)	Sony IMX533 CMOS (Mono/Color)	Sony IMX571 CMOS (Mono/Color)
Integrated Filter Wheel	No	Yes	No
Resolution	3011 x 3011	3011 x 3011	6252 x 4176
Sensor Diagonal	15.968 mm (11.3 mm x 11.3 mm)	15.968 mm (11.3 mm x 11.3 mm)	28.3 mm (23.5 mm x 15.7 mm)
Pixel Size	3.76 μm	3.76 μm	3.76 μm
Full Well Capacity	>50,000 e⁻	>50,000 e⁻	>50,000 e⁻
Read Noise	1.6 e⁻ (High Gain) / 3.6 e⁻ (Low Gain)	1.6 e⁻ (High Gain) / 3.6 e⁻ (Low Gain)	1.6 e⁻ (High Gain) / 3.6 e⁻ (Low Gain)
Dark Current	0.0005 e⁻/p/s at -20°C	0.0005 e⁻/p/s at -20°C	0.0005 e⁻/p/s at -20°C
Cooling Capacity	35°C below ambient	35°C below ambient	35°C below ambient
Mount Type	M42 x 0.75 (T-mount) or 1″-32 UN 2A (C-Mount)	M42 x 0.75 (T-mount)	M54 x 0.75
ADC	14-bit (with 16-bit image mode)	14-bit (with 16-bit image mode)	16-bit
Back Focus Distance	17.5 mm ±0.5 mm	29.5 mm ±0.5 mm	17.5 mm ±0.5 mm
Reading Mode	Electronic Rolling Shutter	Electronic Rolling Shutter	Electronic Rolling Shutter
Exposure Range	0.001s to 24 hours	0.001s to 24 hours	0.001s to 24 hours
Frame Rate	12 FPS	12 FPS	4 FPS
Power Supply	12VDC 5A	12VDC 5A	12VDC 5A
