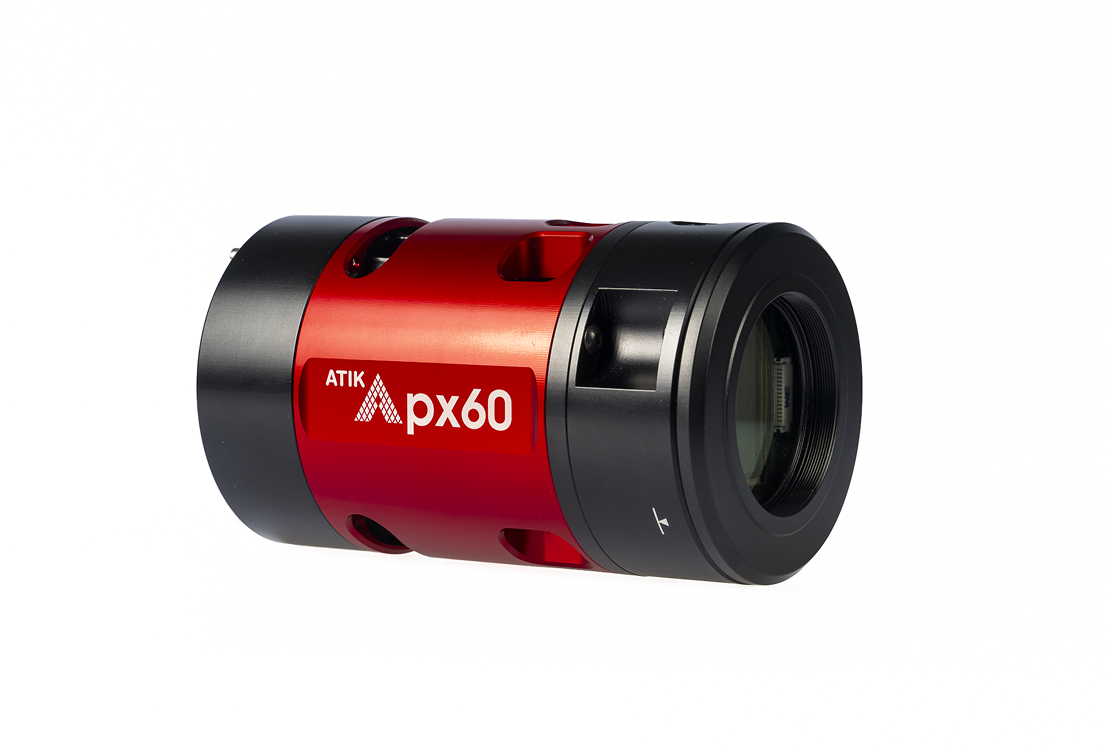

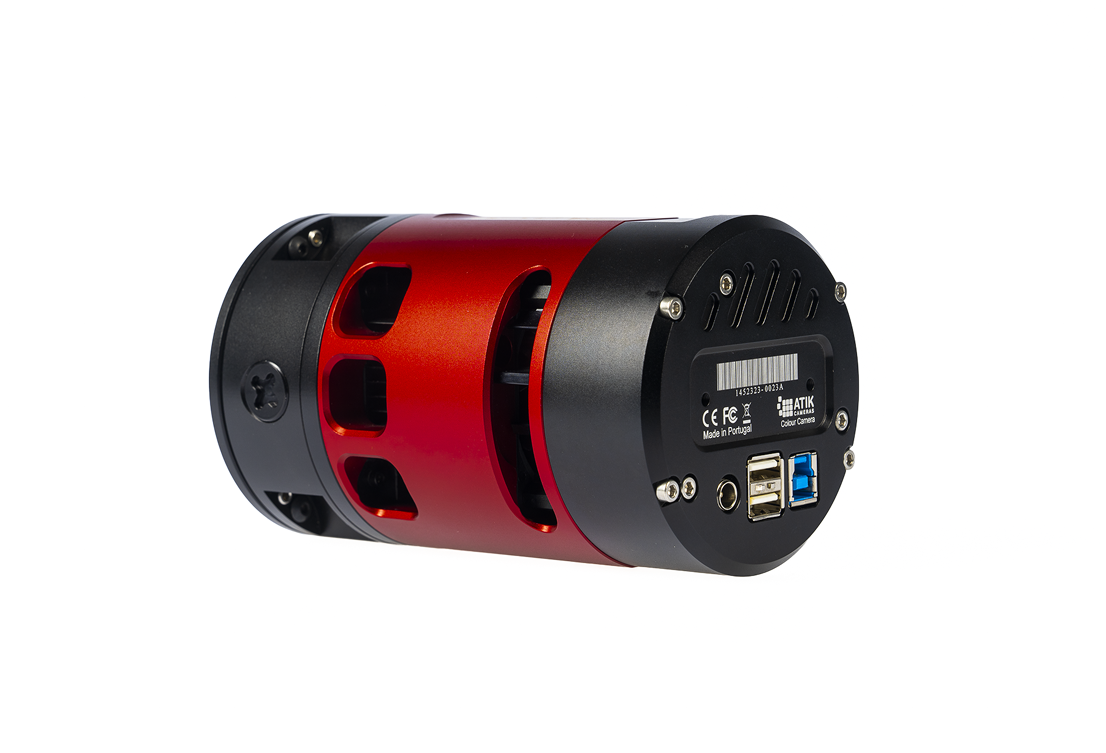

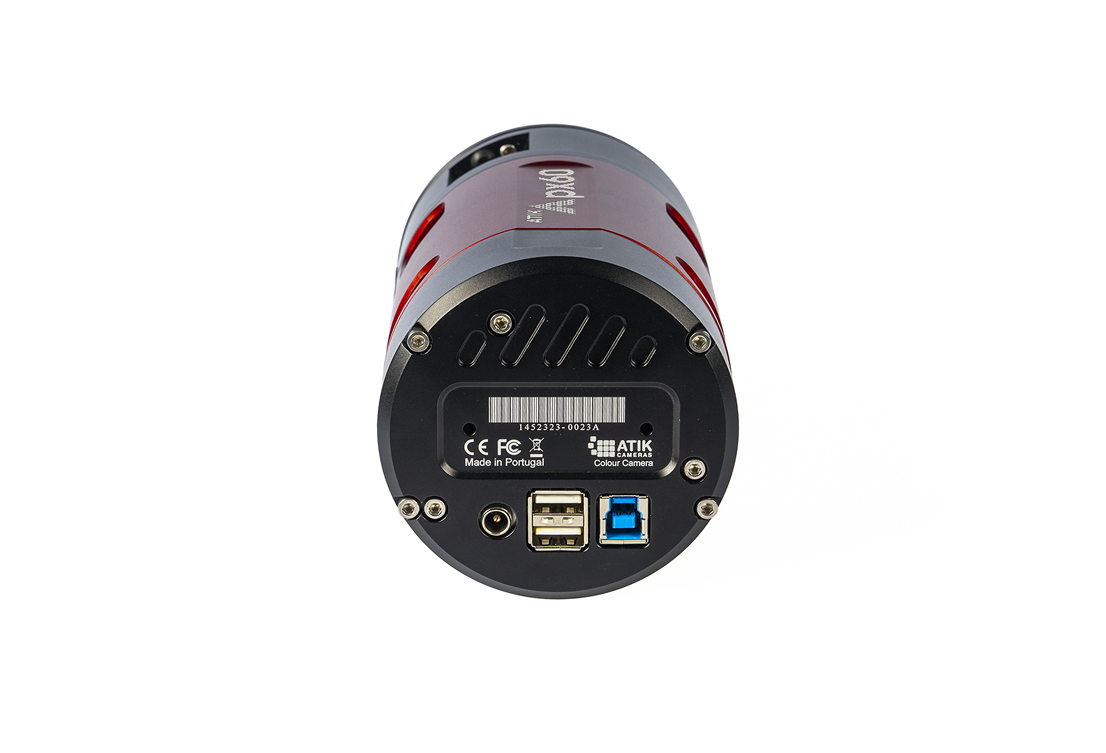

The **ATIK Apx60** is a high-performance cooled camera optimized for demanding imaging applications. It features a 3.76 μm pixel size with a full well capacity of 51,000 electrons, delivering exceptional resolution and wide dynamic range to accurately capture both faint and bright structures. With read noise as low as 1.2 e⁻ in High Gain Mode and ultra-low dark current of 0.002 e⁻/s/px at -15°C, the camera enables ultra-long exposures up to 24 hours with outstanding stability. Advanced thermoelectric cooling reduces sensor temperature by 35°C below ambient, effectively eliminating thermal noise during extended sessions. The Apx60 combines robust, durable construction with a compact form factor for straightforward installation and repeatable performance in challenging conditions.
| Specification | Details | Specification | Details |
|---|---|---|---|

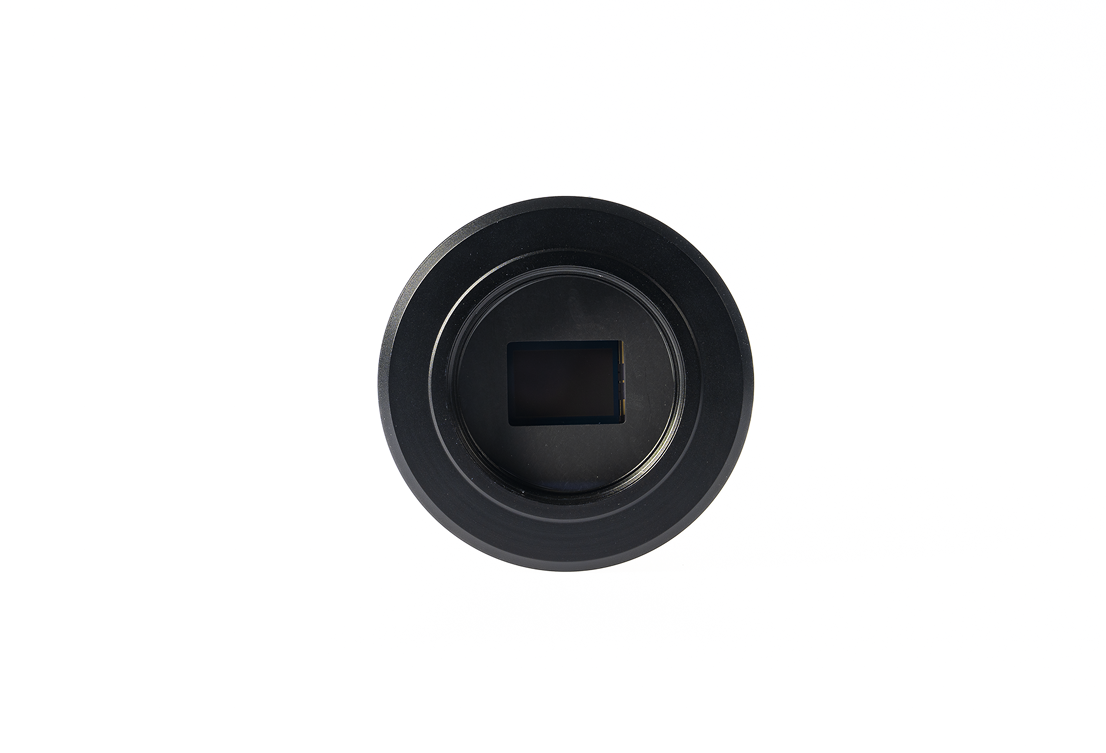

| Image Sensor | Sony IMX455 CMOS (Mono/Color) | Mount Type | M54 x 0.75 |
| Resolution | 9576 x 6388 | ADC | 16-bit |
| Sensor Diagonal | 43.3 mm (36 mm x 24 mm) | Back Focus Distance | 17.5 mm ±0.5 mm (10.5 mm ±0.5 mm without levelling plate) |
| Pixel Size | 3.76 μm | Reading Mode | Electronic Rolling Shutter |
| Full Well Capacity | 51,000 e⁻ | Exposure Range | 0.001s to 24 hours |
| Read Noise | 1.2 e⁻ (High Gain) / 3.6 e⁻ (Low Gain) | Frame Rate | 3.1 FPS |
| Dark Current | 0.002 e⁻/s/px at -15°C | Maximum Current Consumption | 2.4 A |
| Cooling Capacity | 35°C below ambient | Power Supply | 12VDC 5A |
