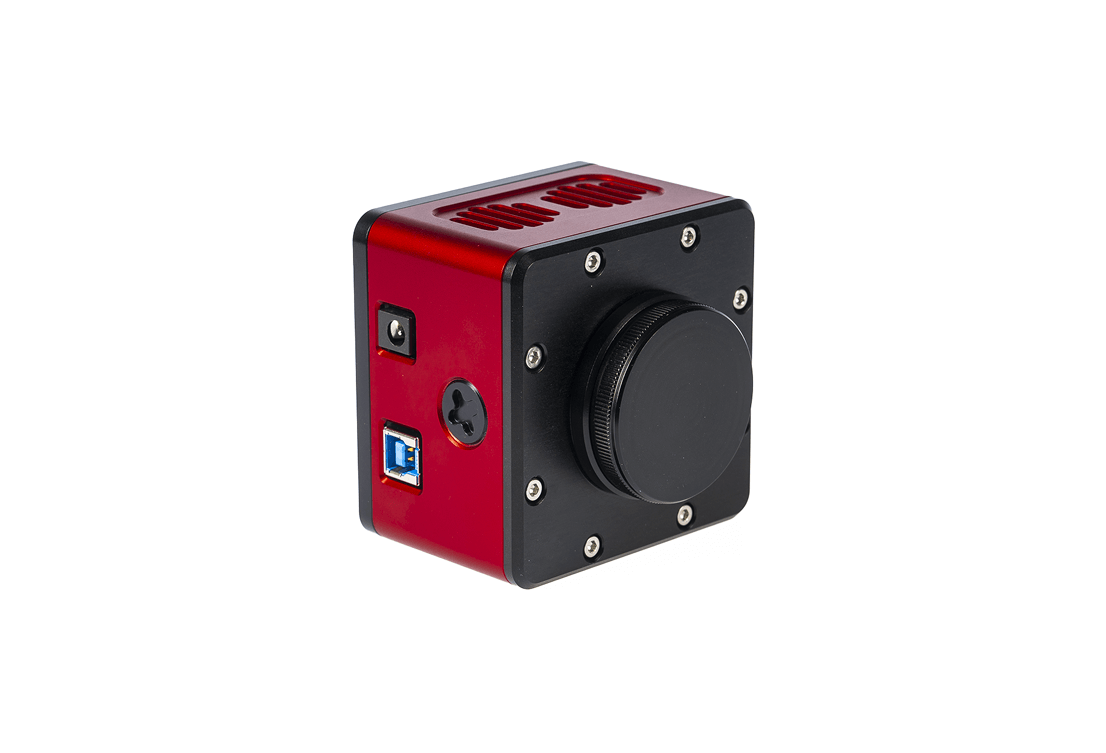

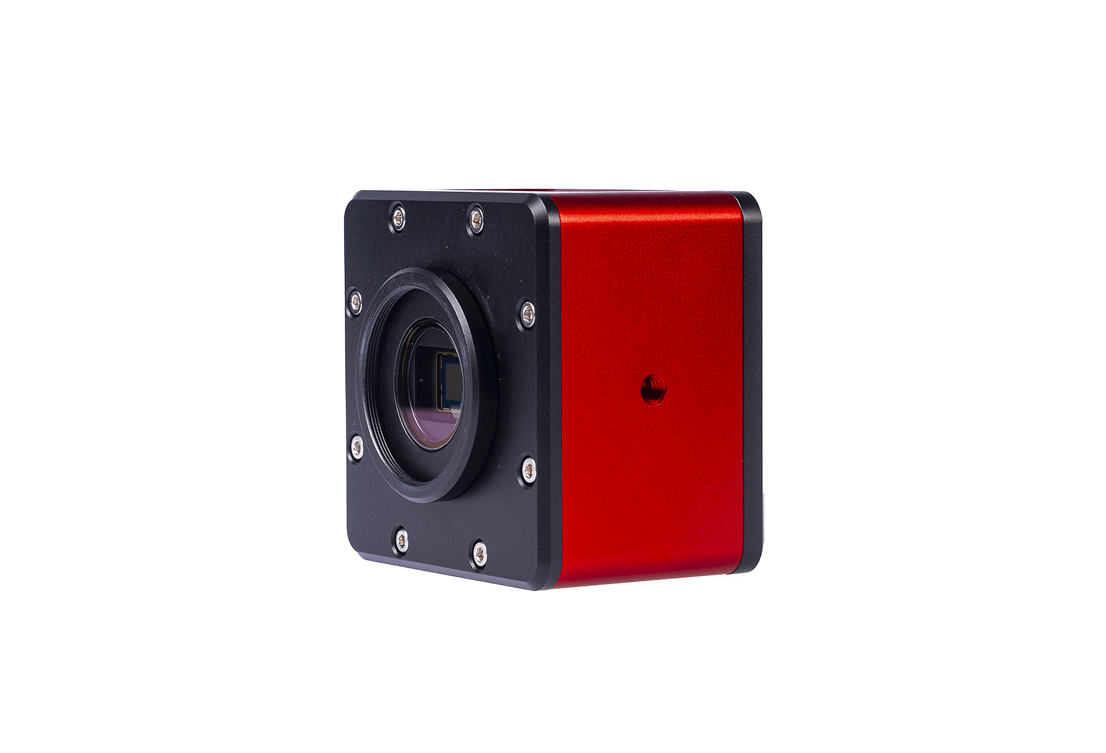

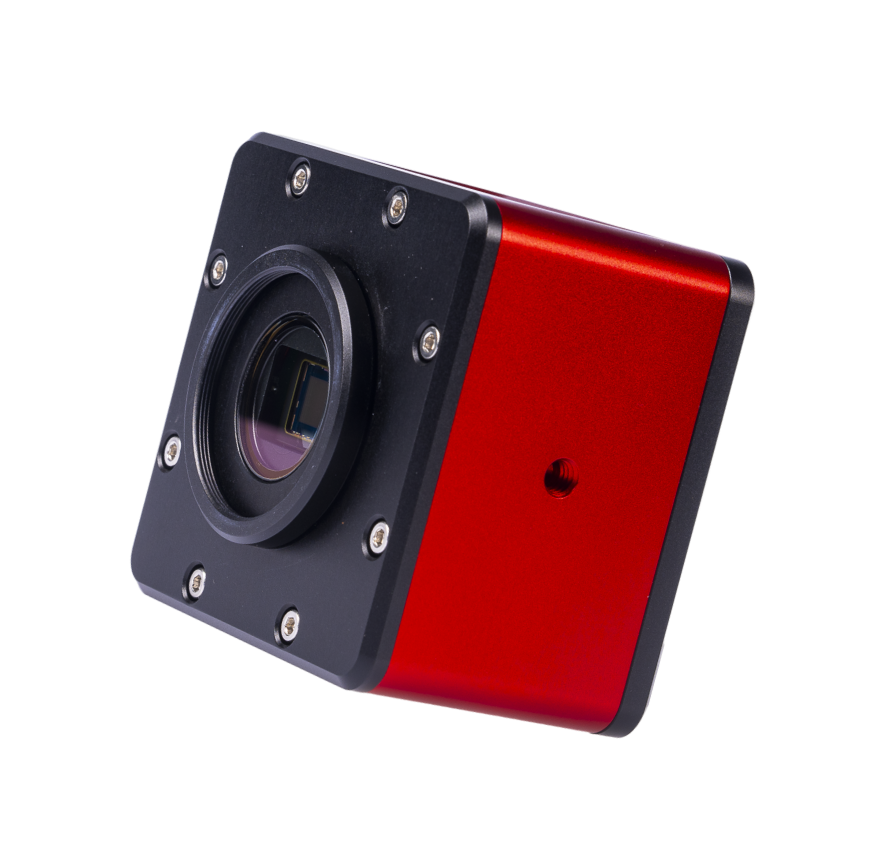

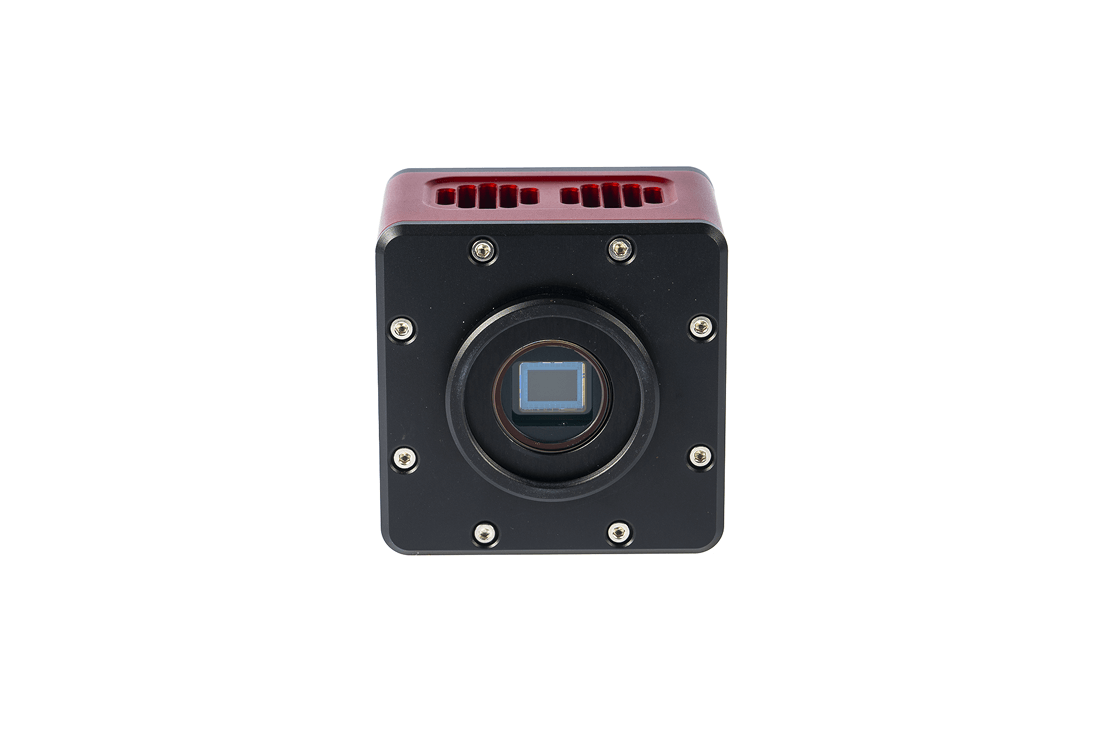

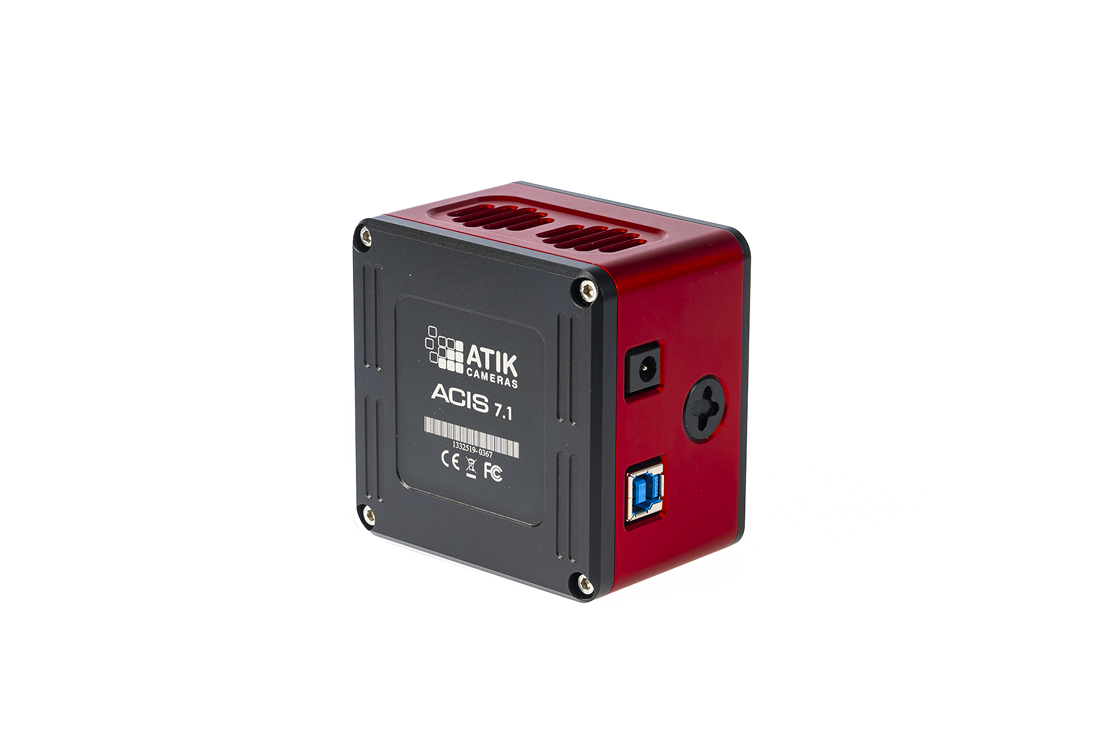

ATIK CAMERAS [ACIS 7.1]

The ATIK ACIS 7.1 is a high-resolution CMOS camera built on the Sony IMX428 sensor, designed for applications requiring higher spatial detail and field of view without the computational overhead of very large sensor formats.

Performance Specifications

– Resolution: 7.1 megapixels (3208 × 2200 pixels)
– Sensor size: 14.5 × 10 mm (17.6 mm diagonal)
– Pixel size: 4.5 μm
– Full-well capacity: 25,000 e⁻
– Read noise: 3 e⁻
– Dark current: 0.03 e⁻/pixel/sec at -10°C
– Frame rate: 25 FPS
– Thermoelectric cooling: 35°C below ambient
– Mount options: M42 (T-mount) or C-mount

Key Features

– 4.5 μm pixels balance sensitivity with resolution, capturing fine detail at production-line speeds
– Global shutter design guarantees distortion-free captures for dynamic, high-velocity applications
– Clean, accurate imaging across a wide dynamic range adapts equally to bright environments and low-light scenes where SNR is critical
– Compact mechanical footprint with flexible mounting options enables easy integration into medical imaging systems, industrial vision platforms, and OEM devices
– Stable thermal performance with proven 35°C cooling delta ensures consistent operation during extended use
