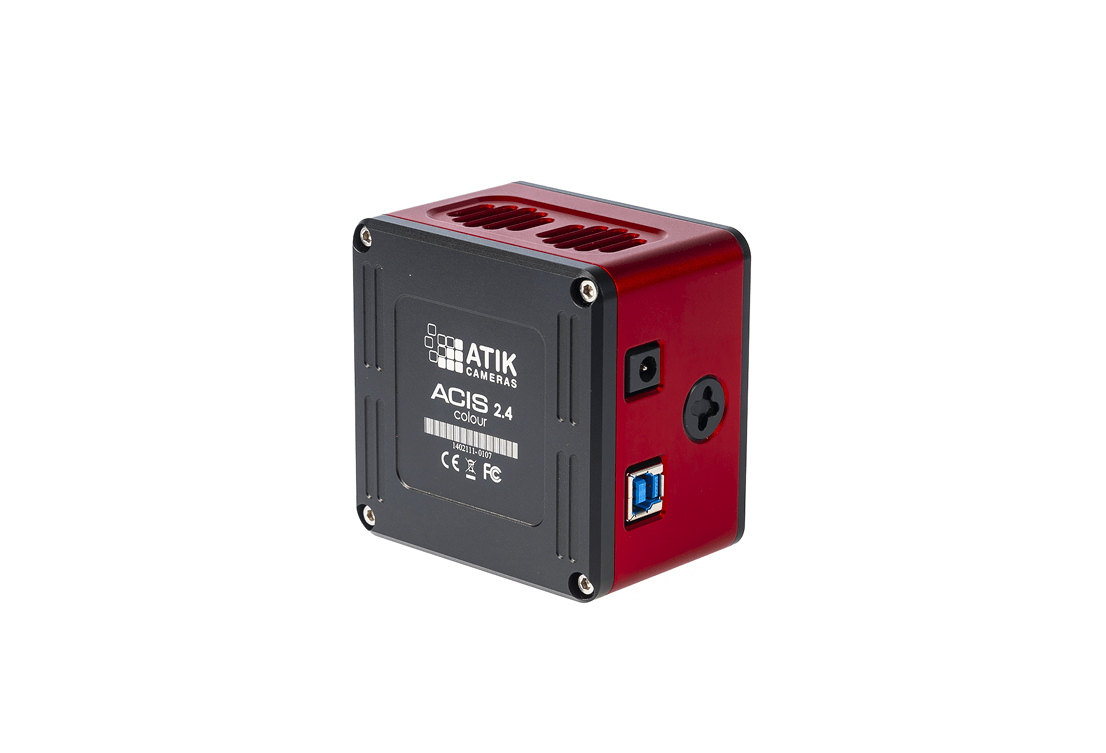

ATIK CAMERAS [ACIS 2.4]

The ATIK ACIS 2.4 is a high-speed CMOS camera powered by the Sony IMX249 sensor, designed for industrial inspection, robotic vision, traffic monitoring, and machine learning environments where crisp detail and efficient data handling are critical.

Performance Specifications

– Resolution: 2.3 megapixels (1920 × 1200 pixels)
– Sensor size: 11.4 × 7.2 mm (13.4 mm diagonal)
– Pixel size: 5.86 μm
– Full-well capacity: 33,000 e⁻
– Read noise: 3 e⁻
– Dark current: 0.03 e⁻/pixel/sec at -10°C
– Frame rate: 31 FPS
– Thermoelectric cooling: 35°C below ambient
– Maximum exposure: Up to 1 hour

Key Features

– Global shutter architecture captures every pixel simultaneously, eliminating motion distortion for high-velocity objects—unlike rolling shutter alternatives
– High-speed 31 FPS frame rate enables speed-sensitive imaging without compromise
– Large 33,000 e⁻ well depth maintains excellent signal-to-noise performance across bright and dark regions, offering wide dynamic range for unpredictable lighting
– Ultra-low read noise and minimal dark current ensure clean, usable long exposures
– Compact, mechanically flexible design with efficient TE cooling allows easy integration into space-constrained OEM devices, laboratory setups, and industrial rigs
