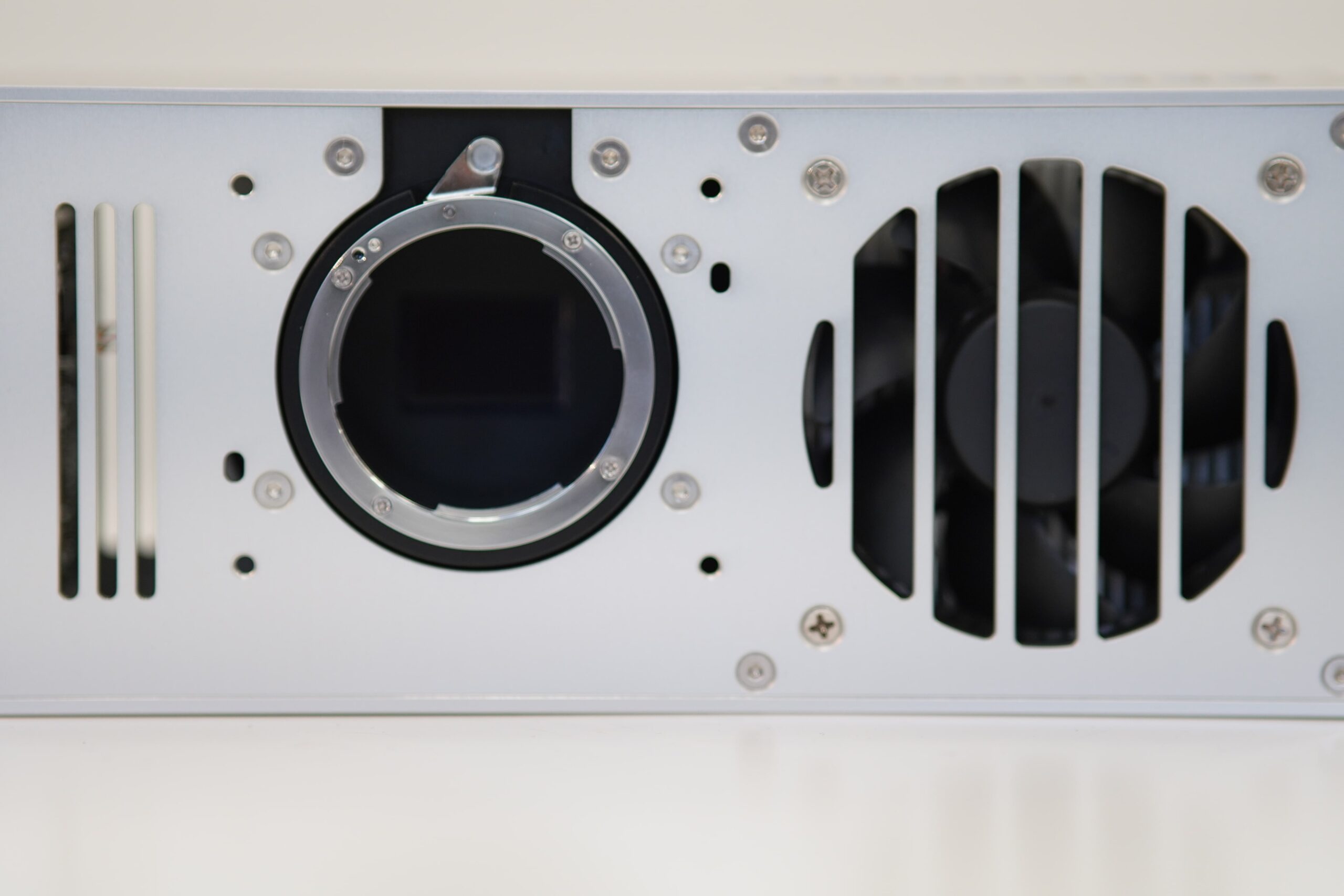

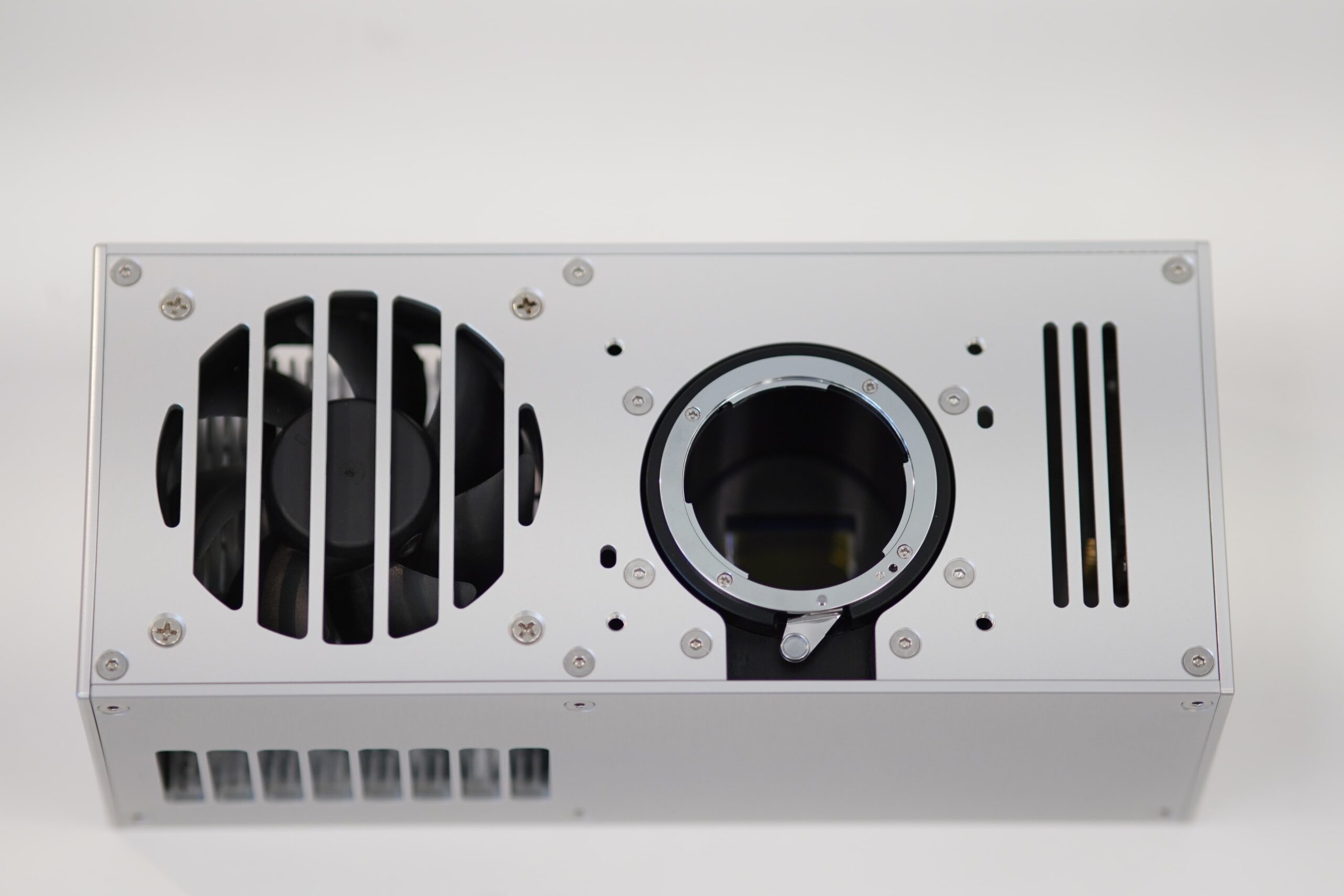

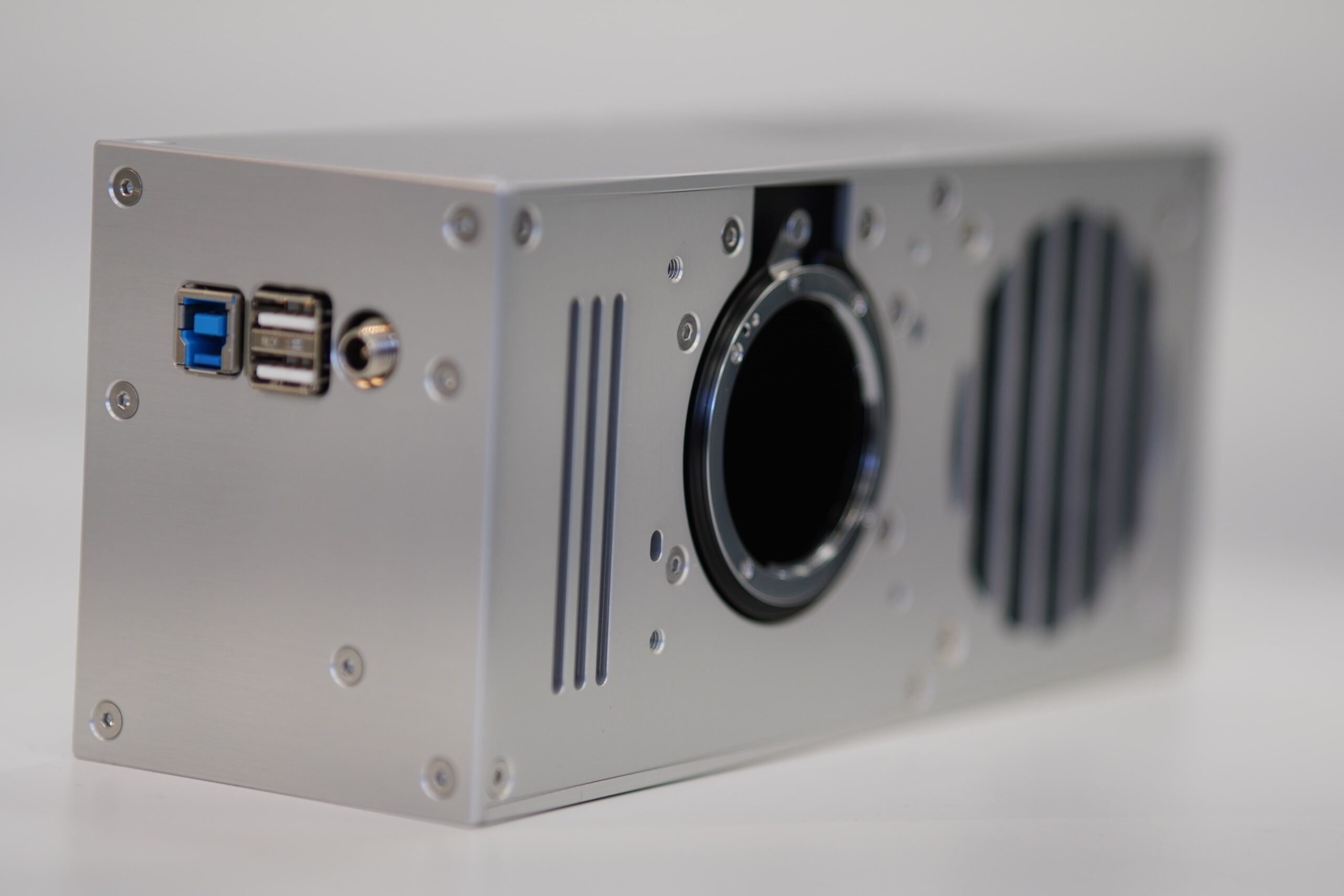

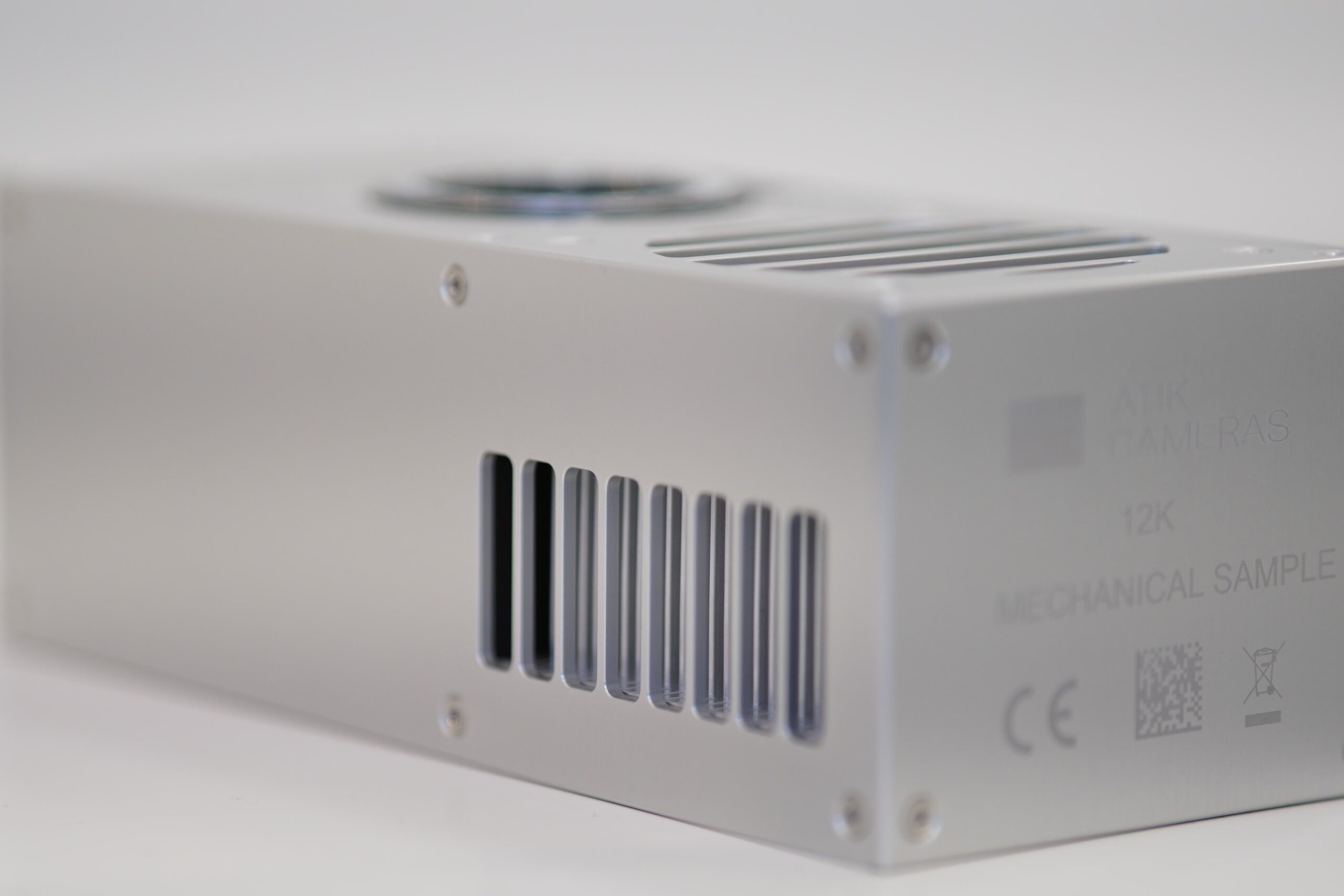

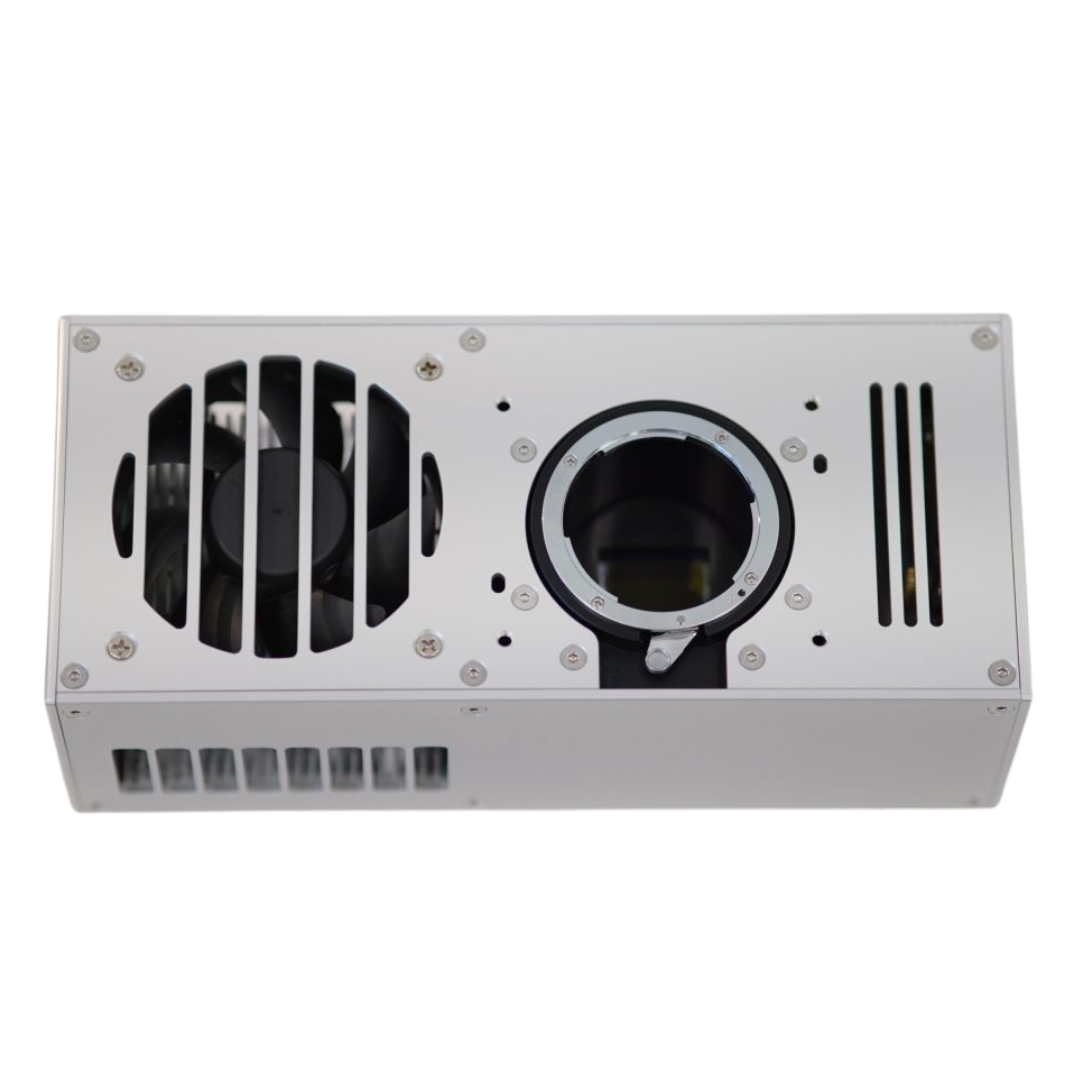

| Specification | Details | Specification | Details |
|---|---|---|---|
| Image Sensor | Sony IMX571 CMOS (Mono/Color) | Mount Type | Nikon F-mount |
| Resolution | 6248 x 4176 | ADC | 16-bit |
| Sensor Diagonal | 28.3 mm (23.5 mm x 15.7 mm) | Back Focus Distance | 47.7 mm ±0.5 mm |
| Pixel Size | 3.76 μm | Reading Mode | Electronic Rolling Shutter |
| Full Well Capacity | 51,000 e⁻ | Exposure Range | 0.001s to 24 hours |
| Read Noise | 1.4 e⁻ (High Gain) / 3.6 e⁻ (Low Gain) | Frame Rate | 4 FPS |
| Dark Current | 0.0008 e⁻/p/s at -15°C | Maximum Current Consumption | 2.4 A |
| Cooling Capacity | 35°C below ambient (tested at 25°C, 50% humidity, non-condensing) | Power Supply | 12VDC 5A |
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
![SVS-VISTEK HR [CoaXPress]](https://www.jm-vistec.com/wp-content/uploads/2023/01/SVS-HR-300x300.png)
Latest Technology And Fast Data Transfer Speeds
The HR CXP-6 and CXP-12 cameras are equipped with the latest CoaXPress technology, which enables lightning-fast data transfer speeds of up to 12.5 Gbps per channel. This not only ensures seamless integration into existing systems, but also the ability to capture and process high-resolution images in real time.
CoaXPress was developed to cope with the increasing bandwidths of new sensor generations. Up to 6.25 GBit/s or 12.5 GBit/s can be transmitted per line. SVS-Vistek supplies CoaXPress cameras with four CoaXPress-6 or CoaXPress-12 lines and thus provides a data bandwidth of 25 GBit/s or 50 GBit/s.
The HR series with CoaXPress is equipped with modern, fast and high-resolution CMOS sensors. With outstanding frame rates, the HR offers a wide range of industrial hardware and software features.
Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
With its thin, long cables and extremely high bandwidth, CoaXPress offers the perfect interface for high-resolution and very fast CMOS sensors
Demanding applications in quality assurance and plant engineering benefit from this combination of maximum resolution and maximum speed.
Key Features:
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● With trigger and I/O
● Single-board cameras
