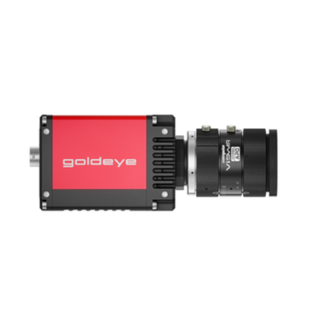

Short-wave infrared (SWIR) cameras with InGaAs sensor technology

Goldeye cameras are equipped with InGaAs sensor technology making them sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm. Some models have extended sensitivity in the visible spectrum down to 400 nm or up to 2200 nm. All Goldeye SWIR cameras can be operated at very high frame rates and capture outstanding low-noise images. They are the perfect choice for industrial and scientific applications beyond the visible spectrum. All Goldeye models are available with either a Camera Link or a GigE Vision interface.

Goldeye is a compact industrial and advanced scientific SWIR camera series. Benefit from its high versatility!

Its modular design offers you SWIR cameras in multiple-flavors whether resolution, interface, lens-mount, optical filter or sensor cooling wise (TEC1, TEC2, TECless).
Multiple image processing features and optional sensor cooling ensure you best imaging results with low-noise, high linearity and dynamic range
High frame rates enable to speed up your processes
Experience an eased system integration supported by features like, Power over Ethernet enabling single cable solutions, comprehensive I/O control functionality, or multiple mounting options.

Allied Vision Goldeye SWIR Series - Camera Link Models

Model	Sensor Type	Sensor Size	Lens Mount	Frame Rate [fps]	ADC	Interface
GigE (Cooled)
Goldeye G-008 SWIR Cool TEC1	FPA-320×256 InGaAs	320×256	C-Mount	344	14-bit	GigE (Cooled)
Goldeye G-032 SWIR Cool TEC2	FPA-636×508 InGaAs	636×508	C-Mount	100	14-bit	GigE (Cooled)
Goldeye G-034 SWIR TEC2	FPA-636×508 InGaAs	636×508	C-Mount	303	14-bit	GigE (Cooled)
Camera Link (Cooled)
Goldeye CL-008 SWIR Cool TEC1	FPA-320×256 InGaAs	320×256	C-Mount	344	14-bit	CL (Cooled)
Goldeye CL-032 SWIR Cool TEC2	FPA-636×508 InGaAs	636×508	C-Mount	100	14-bit	CL (Cooled)
Goldeye CL-034 SWIR TEC2	FPA-636×508 InGaAs	636×508	C-Mount	303	14-bit	CL (Cooled)
Camera Link
Goldeye CL-008 SWIR TEC1	FPA-320×256 InGaAs	320×256	C-Mount	344	14-bit	Camera Link
Goldeye CL-008 XSWIR 1.9 TEC2	FPA-320×256-1.9 InGaAs	320×256	C-Mount	344	14-bit	Camera Link
Goldeye CL-008 XSWIR 2.2 TEC2	FPA-320×256-2.2 InGaAs	320×256	C-Mount	344	14-bit	Camera Link
Goldeye CL-030 VSWIR T1	IMX991 656×520 InGaAs	656×520	C-Mount	258	12-bit	Camera Link
Goldeye CL-032 SWIR TEC1	FPA-636×508 InGaAs	636×508	C-Mount	100	14-bit	Camera Link
Goldeye CL-033 SWIR TEC-less	FPA-640×512 InGaAs	640×512	C-Mount	301	14-bit	Camera Link
Goldeye CL-033 SWIR TEC1	FPA-640×512 InGaAs	640×512	C-Mount	301	14-bit	Camera Link
Goldeye CL-034 SWIR TEC1	FPA-636×508 InGaAs	636×508	C-Mount	303	14-bit	Camera Link
Goldeye CL-034 XSWIR 1.9 TEC2	FPA-640×512-1.9 InGaAs	640×512	C-Mount	303	14-bit	Camera Link
Goldeye CL-034 XSWIR 2.2 TEC2	FPA-640×512-2.2 InGaAs	640×512	C-Mount	303	14-bit	Camera Link
Goldeye CL-130 VSWIR T1	IMX990 1280×1024 InGaAs	1280×1024	C-Mount	93	12-bit	Camera Link

Select options below to view price

Add to Proposal

Boost performance by up to 3x over its precursor thanks to an Intel x6000 series embedded processor
Capture high-resolution images at high speed through a choice of CMOS sensors from two to 16 Megapixels
Deploy in dirty, humid, or harsh industrial environments by way of a compact IP67-rated design
Communicate actions and results to other automation and enterprise equipment via real-time digital I/Os, and Ethernet (TCP/IP, CC-Link IE Field Basic, EtherNet/IP™², Modbus®, PROFINET®, and native robot interfaces)
Handle Human-Machine Interface (HMI) function by way of VGA and USB connectivity
Simplify vision setup and upkeep via integrated lens focusing and illumination intensity control
Synchronize to the manufacturing line through the support for incremental rotary encoders
Solve machine vision applications efficiently with Matrox Design Assistant X software by constructing flowcharts instead of writing program code
Maintain control and independence through the ability to code custom flowchart steps
Tackle machine vision applications with utmost confidence using field-proven tools for analyzing, locating, classifying, measuring, reading, and verifying
Leverage deep learning for visual inspection through image classification and segmentation tools
