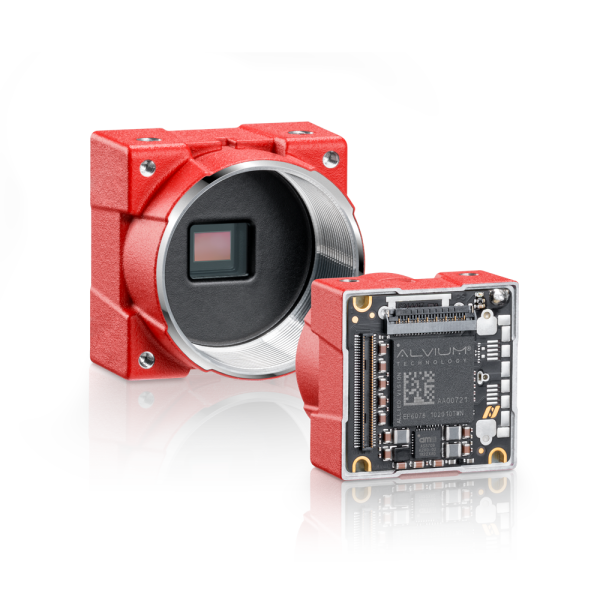

Allied Vision Alvium C

Name: Allied Vision Alvium C
SKU: 5815
Availability: InStock

Resolution: 0.3-24.6 MPFramerate: 21-689 fps

Industrial-Grade CSI-2 Cameras For Advanced Embedded Vision

The MIPI CSI-2 Alvium camera gives embedded system developers access to Sony’s high-performance image sensors. Alvium C combines a compact sugar cube format with large high-resolution sensors. It offers the highest possible resolution within such a small footprint (open housing).

High Image Quality For Embedded Systems

Implement driver once, use with any Alvium CSI-2 camera

Use our Vimba X APIs to control Alvium CSI-2 camera via GenICam for CSI-2 Access
Advanced triggering and image optimization for CSI-2
Wide embedded platform support; Nvidia Jetson, AMD Xilinx Zynq, NXP i.MX8M Plus

Alvium C Is The Perfect Camera For You If:

You need excellent image quality for demanding embedded vision applications.
You want to offload image processing tasks from your embedded board.
You’re looking for a scalable solution that makes it easy to exchange cameras as needed.
You’re designing low-power or battery-powered systems.

Allied Vision Alvium C Models

Model	MP	Resolution	Sensor	Pixel Size	Framerate	Interface
Alvium 1800 C-030 VSWIR	0.3 MP	656 × 520	Sony IMX991 \| InGaAs	5.00 µm	249 fps	MIPI CSI-2
Alvium 1800 C-040	0.4 MP	728 × 544	Sony IMX287	6.90 µm	494 fps	MIPI CSI-2
Alvium 1800 C-052	0.5 MP	816 × 624	Sony IMX426	9.00 µm	689 fps	MIPI CSI-2
Alvium 1800 C-1236	12.4 MP	4112 × 3008	Sony IMX304	3.45 µm	22 fps	MIPI CSI-2
Alvium 1800 C-1240	12.2 MP	4024 × 3032	Sony IMX226	1.85 µm	41 fps	MIPI CSI-2
Alvium 1800 C-1242	12.4 MP	4128 × 3008	Sony IMX545	2.74 µm	40 fps	MIPI CSI-2
Alvium 1800 C-130 VSWIR	1.3 MP	1296 × 1032	Sony IMX990 \| InGaAs	5.00 µm	130 fps	MIPI CSI-2
Alvium 1800 C-158	1.6 MP	1456 × 1088	Sony IMX273	3.45 µm	262 fps	MIPI CSI-2
Alvium 1800 C-1620	16.2 MP	5328 × 3040	Sony IMX542	2.74 µm	32 fps	MIPI CSI-2
Alvium 1800 C-203	2.0 MP	1632 × 1248	Sony IMX422	4.50 µm	225 fps	MIPI CSI-2
Alvium 1800 C-2040	20.4 MP	4512 × 4512	Sony IMX541	2.74 µm	25 fps	MIPI CSI-2
Alvium 1800 C-2050	19.7 MP	5376 × 3672	Sony IMX183	2.40 µm	26 fps	MIPI CSI-2
Alvium 1800 C-234	2.4 MP	1936 × 1216	Sony IMX249	5.86 µm	40 fps	MIPI CSI-2
Alvium 1800 C-235	2.4 MP	1936 × 1216	Sony IMX174	5.86 µm	155 fps	MIPI CSI-2
Alvium 1800 C-240	2.4 MP	1936 × 1216	Sony IMX392	3.45 µm	192 fps	MIPI CSI-2
Alvium 1800 C-2460	24.6 MP	5328 × 4608	Sony IMX540	2.74 µm	21 fps	MIPI CSI-2
Alvium 1800 C-291	2.9 MP	1944 × 1472	Sony IMX421	4.50 µm	166 fps	MIPI CSI-2
Alvium 1800 C-319	3.2 MP	2064 × 1544	Sony IMX265	3.45 µm	54 fps	MIPI CSI-2
Alvium 1800 C-320 VSWIR	3.2 MP	2080 × 1544	Sony IMX993 \| InGaAs	3.45 µm	131 fps	MIPI CSI-2
Alvium 1800 C-500	5.0 MP	2592 × 1944	ON Semi AR0521SR	2.20 µm	68 fps	MIPI CSI-2
Alvium 1800 C-507	5.1 MP	2464 × 2056	Sony IMX264	3.45 µm	34 fps	MIPI CSI-2
Alvium 1800 C-507 Pol	5.1 MP	2464 × 2056	Sony IMX264 Polarizer	3.45 µm	34 fps	MIPI CSI-2
Alvium 1800 C-508	5.1 MP	2464 × 2056	Sony IMX250	3.45 µm	95 fps	MIPI CSI-2
Alvium 1800 C-508 Pol	5.1 MP	2464 × 2056	Sony IMX250 Polarizer	3.45 µm	95 fps	MIPI CSI-2
Alvium 1800 C-510	5.1 MP	2464 × 2064	Sony IMX548	2.74 µm	81 fps	MIPI CSI-2
Alvium 1800 C-511	5.1 MP	2464 × 2064	Sony IMX547	2.74 µm	79 fps	MIPI CSI-2
Alvium 1800 C-530 VSWIR	5.3 MP	2592 × 2056	Sony IMX992 \| InGaAs	3.45 µm	84 fps	MIPI CSI-2
Alvium 1800 C-811	8.1 MP	2848 × 2848	Sony IMX546	2.74 µm	59 fps	MIPI CSI-2
Alvium 1800 C-812 UV	8.1 MP	2848 × 2848	Sony IMX487	2.74 µm	58 fps	MIPI CSI-2
Alvium 1800 C-895	8.9 MP	4112 × 2176	Sony IMX267	3.45 µm	31 fps	MIPI CSI-2
