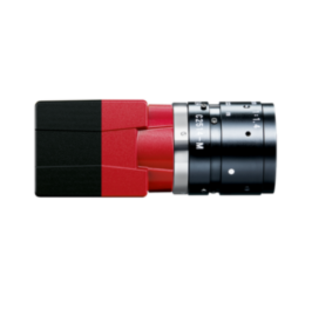

Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.
Alvium 1800 U is a small and powerful industrial camera. Benefit from high image quality at a great price-performance ratio!
Various sensors: Select between CMOS sensors from ON Semi and Sony, including NIR (near infrared), for your individual applications.
Image reproduction quality: Get the best out of your lens-to-sensor combination by high-precision Alvium Sensor Alignment.
Intelligent power management: Design low-power or even battery-powered systems.
USB 3.1 Gen 1: Install our VIMBA Suite and get your first images easily.
Industrial-grade hardware: Design reliable applications by the Micro-B USB 3.1 Gen 1 connector with screw locks.
| Model | Sensor Type | Mono/Color | Sensor Size | Pixel (MP) | Shutter Type | Lens Mount | Frame Rate (fps) | Interface | Dimensions (mm) | Weight (g) |
| 1800 U-040m mono C-Mount open USB90 | Sony IMX287 | Mono | 1/2.9" | 728x544 | CMOS GS | C-Mount USB90 | 495fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-040m mono CS-Mount open USB90 | Sony IMX287 | Mono | 1/2.9" | 728x544 | CMOS GS | CS-Mount USB90 | 495fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-040m mono S-Mount open USB90 | Sony IMX287 | Mono | 1/2.9" | 728x544 | CMOS GS | S-Mount USB90 | 495fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-040c color C-Mount open USB90 | Sony IMX287 | Color | 1/2.9" | 728x544 | CMOS GS | C-Mount IRC USB90 | 495fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-040c color CS-Mount open USB90 | Sony IMX287 | Color | 1/2.9" | 728x544 | CMOS GS | CS-Mount IRC USB90 | 495fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-040c color S-Mount open USB90 | Sony IMX287 | Color | 1/2.9" | 728x544 | CMOS GS | S-Mount USB90 | 495fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-050m mono C-Mount open USB90 | ONSEMI PYTHON 480 | Mono | 1/3.6" | 808x608 | CMOS GS | C-Mount USB90 | 117fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-050m mono CS-Mount open USB90 | ONSEMI PYTHON 480 | Mono | 1/3.6" | 808x608 | CMOS GS | CS-Mount USB90 | 117fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-050m mono S-Mount open USB90 | ONSEMI PYTHON 480 | Mono | 1/3.6" | 808x608 | CMOS GS | S-Mount USB90 | 117fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-050c color C-Mount open USB90 | ONSEMI PYTHON 480 | Color | 1/3.6" | 808x608 | CMOS GS | C-Mount IRC USB90 | 117fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-050c color CS-Mount open USB90 | ONSEMI PYTHON 480 | Color | 1/3.6" | 808x608 | CMOS GS | CS-Mount IRC USB90 | 117fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-050c color S-Mount open USB90 | ONSEMI PYTHON 480 | Color | 1/3.6" | 808x608 | CMOS GS | S-Mount USB90 | 117fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-052m mono C-Mount open USB90 | Sony IMX426 | Mono | 1/1.7" | 816x624 | CMOS GS | C-Mount USB90 | 691fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-052m mono CS-Mount open USB90 | Sony IMX426 | Mono | 1/1.7" | 816x624 | CMOS GS | CS-Mount USB90 | 691fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-052c color C-Mount open USB90 | Sony IMX426 | Color | 1/1.7" | 816x624 | CMOS GS | C-Mount IRC USB90 | 691fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-052c color CS-Mount open USB90 | Sony IMX426 | Color | 1/1.7" | 816x624 | CMOS GS | CS-Mount IRC USB90 | 691fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-120m mono C-Mount open USB90 | ONSEMI AR0135CS | Mono | 1/3" | 1280x960 | CMOS GS | C-Mount USB90 | 52fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-120m mono CS-Mount open USB90 | ONSEMI AR0135CS | Mono | 1/3" | 1280x960 | CMOS GS | CS-Mount USB90 | 52fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-120m mono S-Mount open USB90 | ONSEMI AR0135CS | Mono | 1/3" | 1280x960 | CMOS GS | S-Mount USB90 | 52fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-120c color C-Mount open USB90 | ONSEMI AR0135CS | Color | 1/3" | 1280x960 | CMOS GS | C-Mount IRC USB90 | 52fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-120c color CS-Mount open USB90 | ONSEMI AR0135CS | Color | 1/3" | 1280x960 | CMOS GS | CS-Mount IRC USB90 | 52fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-120c color S-Mount open USB90 | ONSEMI AR0135CS | Color | 1/3" | 1280x960 | CMOS GS | S-Mount USB90 | 52fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-131m mono C-Mount open USB90 | E2V EV76C560 | Mono | 1/1.8" | 1280x1024 | CMOS RS | C-Mount USB90 | 59fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-131m mono CS-Mount open USB90 | E2V EV76C560 | Mono | 1/1.8" | 1280x1024 | CMOS RS | CS-Mount USB90 | 59fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-131m mono S-Mount open USB90 | E2V EV76C560 | Mono | 1/1.8" | 1280x1024 | CMOS RS | S-Mount USB90 | 59fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-131c color C-Mount open USB90 | E2V EV76C560 | Color | 1/1.8" | 1280x1024 | CMOS RS | C-Mount IRC USB90 | 59fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-131c color CS-Mount open USB90 | E2V EV76C560 | Color | 1/1.8" | 1280x1024 | CMOS RS | CS-Mount IRC USB90 | 59fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-131c color S-Mount open USB90 | E2V EV76C560 | Color | 1/1.8" | 1280x1024 | CMOS RS | S-Mount USB90 | 59fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-158m mono C-Mount open USB90 | Sony IMX273 | Mono | 1/2.9" | 1456x1088 | CMOS GS | C-Mount USB90 | 258fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-158m mono CS-Mount open USB90 | Sony IMX273 | Mono | 1/2.9" | 1456x1088 | CMOS GS | CS-Mount USB90 | 258fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-158m mono S-Mount open USB90 | Sony IMX273 | Mono | 1/2.9" | 1456x1088 | CMOS GS | S-Mount USB90 | 258fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-158c color C-Mount open USB90 | Sony IMX273 | Color | 1/2.9" | 1456x1088 | CMOS GS | C-Mount IRC USB90 | 258fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-158c color CS-Mount open USB90 | Sony IMX273 | Color | 1/2.9" | 1456x1088 | CMOS GS | CS-Mount IRC USB90 | 258fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-158c color S-Mount open USB90 | Sony IMX273 | Color | 1/2.9" | 1456x1088 | CMOS GS | S-Mount USB90 | 258fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-192m mono C-Mount open USB90 | E2V EV76C570 | Mono | 1/1.8" | 1600x1200 | CMOS RS | C-Mount USB90 | 59fps | USB3.0 | 32x29x38mm | 70g |
| 1800 U-192m mono CS-Mount open USB90 | E2V EV76C570 | Mono | 1/1.8" | 1600x1200 | CMOS RS | CS-Mount USB90 | 59fps | USB3.0 | 29x29x33mm | 70g |
| 1800 U-192m mono S-Mount open USB90 | E2V EV76C570 | Mono | 1/1.8" | 1600x1200 | CMOS RS | S-Mount USB90 | 59fps | USB3.0 | 29x29x33mm | 70g |
| 1800 U-192c color C-Mount open USB90 | E2V EV76C570 | Color | 1/1.8" | 1600x1200 | CMOS RS | C-Mount IRC USB90 | 59fps | USB3.0 | 32x29x38mm | 70g |
| 1800 U-192c color CS-Mount open USB90 | E2V EV76C570 | Color | 1/1.8" | 1600x1200 | CMOS RS | CS-Mount IRC USB90 | 59fps | USB3.0 | 32x29x33mm | 70g |
| 1800 U-192c color S-Mount open USB90 | E2V EV76C570 | Color | 1/1.8" | 1600x1200 | CMOS RS | S-Mount USB90 | 59fps | USB3.0 3 | 2x29x33mm | 70g |
| 1800 U-203m mono C-Mount open USB90 | Sony IMX422 | Mono | 1/1.7" | 1624x1240 | CMOS GS | C-Mount USB90 | 200fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-203m mono CS-Mount open USB90 | Sony IMX422 | Mono | 1/1.7" | 1624x1240 | CMOS GS | CS-Mount USB90 | 200fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-203c color C-Mount open USB90 | Sony IMX422 | Color | 1/1.7" | 1624x1240 | CMOS GS | C-Mount IRC USB90 | 200fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-203c color CS-Mount open USB90 | Sony IMX422 | Color | 1/1.7" | 1624x1240 | CMOS GS | CS-Mount IRC USB90 | 200fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-234m mono C-Mount open USB90 | Sony IMX249 | Mono | 1/1.2" | 1936x1216 | CMOS GS | C-Mount USB90 | 40fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-234m mono CS-Mount open USB90 | Sony IMX249 | Mono | 1/1.2" | 1936x1216 | CMOS GS | CS-Mount USB90 | 40fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-234c color C-Mount open USB90 | Sony IMX249 | Color | 1/1.2" | 1936x1216 | CMOS GS | C-Mount IRC USB90 | 40fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-234c color CS-Mount open USB90 | Sony IMX249 | Color | 1/1.2" | 1936x1216 | CMOS GS | CS-Mount IRC USB90 | 40fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-235m mono C-Mount open USB90 | Sony IMX174 | Mono | 1/1.2" | 1920x1200 | CMOS GS | C-Mount USB90 | 90fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-235m mono CS-Mount open USB90 | Sony IMX174 | Mono | 1/1.2" | 1920x1200 | CMOS GS | CS-Mount USB90 | 90fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-235c color C-Mount open USB90 | Sony IMX174 | Color | 1/1.2" | 1920x1200 | CMOS GS | C-Mount IRC USB90 | 90fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-235c color CS-Mount open USB90 | Sony IMX174 | Color | 1/1.2" | 1920x1200 | CMOS GS | CS-Mount IRC USB90 | 90fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-240m mono C-Mount open USB90 | Sony IMX392 | Mono | 1/2.3" | 1936x1216 | CMOS GS | C-Mount USB90 | 178fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-240m mono CS-Mount open USB90 | Sony IMX392 | Mono | 1/2.3" | 1936x1216 | CMOS GS | CS-Mount USB90 | 178fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-240m mono S-Mount open USB90 | Sony IMX392 | Mono | 1/2.3" | 1936x1216 | CMOS GS | S-Mount USB90 | 178fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-240c color C-Mount open USB90 | Sony IMX392 | Color | 1/2.3" | 1936x1216 | CMOS GS | C-Mount IRC USB90 | 178fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-240c color CS-Mount open USB90 | Sony IMX392 | Color | 1/2.3" | 1936x1216 | CMOS GS | CS-Mount IRC USB90 | 178fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-240c color S-Mount open USB90 | Sony IMX392 | Color | 1/2.3" | 1936x1216 | CMOS GS | S-Mount USB90 | 178fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-291m mono C-Mount open USB90 | Sony IMX421 | Mono | 2/3" | 1944x1472 | CMOS GS | C-Mount USB90 | 144fps | USB3.0 | 32x29x38mm | 70g |
| 1800 U-291m mono CS-Mount open USB90 | Sony IMX421 | Mono | 2/3" | 1944x1472 | CMOS GS | CS-Mount USB90 | 144fps | USB3.0 | 29x29x33mm | 70g |
| 1800 U-291c color C-Mount open USB90 | Sony IMX421 | Color | 2/3" | 1944x1472 | CMOS GS | C-Mount IRC USB90 | 144fps | USB3.0 | 32x29x38mm | 70g |
| 1800 U-291c color CS-Mount open USB90 | Sony IMX421 | Color | 2/3" | 1944x1472 | CMOS GS | CS-Mount IRC USB90 | 144fps | USB3.0 | 29x29x33mm | 70g |
| 1800 U-319m mono C-Mount open USB90 | Sony IMX265 | Mono | 1/1.8" | 2064x1544 | CMOS GS | C-Mount USB90 | 54fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-319m mono CS-Mount open USB90 | Sony IMX265 | Mono | 1/1.8" | 2064x1544 | CMOS GS | CS-Mount USB90 | 54fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-319m mono S-Mount open USB90 | Sony IMX265 | Mono | 1/1.8" | 2064x1544 | CMOS GS | S-Mount USB90 | 54fps | USB3.0 | 32x29x33mm | 65g |
| 1800 U-319c color C-Mount open USB90 | Sony IMX265 | Color | 1/1.8" | 2064x1544 | CMOS GS | C-Mount IRC USB9 | 54fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-319c color CS-Mount open USB90 | Sony IMX265 | Color | 1/1.8" | 2064x1544 | CMOS GS | CS-Mount IRC USB90 | 54fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-319c color S-Mount open USB90 | Sony IMX265 | Color | 1/1.8" | 2064x1544 | CMOS GS | S-Mount USB90 | 54fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-500m mono C-Mount open USB90 | ONSEMI AR0521 | Mono | 1/2.5" | 2592x1944 | CMOS RS | C-Mount USB90 | 68fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-500m mono CS-Mount open USB90 | ONSEMI AR0521 | Mono | 1/2.5" | 2592x1944 | CMOS RS | CS-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-500m mono S-Mount open USB90 | ONSEMI AR0521 | Mono | 1/2.5" | 2592x1944 | CMOS RS | S-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-500c color C-Mount open USB90 | ONSEMI AR0521 | Color | 1/2.5" | 2592x1944 | CMOS RS | C-Mount IRC USB90 | 68fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-500c color CS-Mount open USB90 | ONSEMI AR0521 | Color | 1/2.5" | 2592x1944 | CMOS RS | CS-Mount IRC USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-500c color S-Mount open USB90 | ONSEMI AR0521 | Color | 1/2.5" | 2592x1944 | CMOS RS | S-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-501m mono NIR C-Mount open USB90 | ONSEMI AR0522 | Mono NIR | 1/2.5" | 2592x1944 | CMOS RS | C-Mount USB90 | 68fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-501m mono NIR CS-Mount open USB90 | ONSEMI AR0522 | Mono NIR | 1/2.5" | 2592x1944 | CMOS RS | CS-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-501m mono NIR S-Mount open USB90 | ONSEMI AR0522 | Mono NIR | 1/2.5" | 2592x1944 | CMOS RS | S-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-501c color NIR C-Mount open USB90 | ONSEMI AR0522 | Color NIR | 1/2.5" | 2592x1944 | CMOS RS | C-Mount USB90 | 68fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-501c color NIR CS-Mount open USB90 | ONSEMI AR0522 | Color NIR | 1/2.5" | 2592x1944 | CMOS RS | CS-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-501c color NIR S-Mount open USB90 | ONSEMI AR0522 | Color NIR | 1/2.5" | 2592x1944 | CMOS RS | S-Mount USB90 | 68fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-507m mono C-Mount open USB90 | Sony IMX264 | Mono | 2/3" | 2464x2056 | CMOS GS | C-Mount USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-507m mono CS-Mount open USB90 | Sony IMX264 | Mono | 2/3" | 2464x2056 | CMOS GS | CS-Mount USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-507c color C-Mount open USB90 | Sony IMX264 | Color | 2/3" | 2464x2056 | CMOS GS | C-Mount IRC USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-507c color CS-Mount open USB90 | Sony IMX264 | Color | 2/3" | 2464x2056 | CMOS GS | CS-Mount IRC USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-507m mono Pol C-Mount open USB90 | Sony IMX264MZR | Mono | 2/3" | 2464x2056 | CMOS GS | C-Mount USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-507m mono Pol CS-Mount open USB90 | Sony IMX264MZR | Mono | 2/3" | 2464x2056 | CMOS GS | CS-Mount USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-507c color Pol C-Mount open USB90 | Sony IMX264MYR | Color | 2/3" | 2464x2056 | CMOS GS | C-Mount IRC USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-507c color Pol CS-Mount open USB90 | Sony IMX264MYR | Color | 2/3" | 2464x2056 | CMOS GS | CS-Mount IRC USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-508m mono C-Mount open USB90 | Sony IMX250 | Mono | 2/3" | 2464x2056 | CMOS GS | C-Mount USB90 | 85fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-508m mono CS-Mount open USB90 | Sony IMX250 | Mono | 2/3" | 2464x2056 | CMOS GS | CS-Mount USB90 | 85fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-508c color C-Mount open USB90 | Sony IMX250 | Color | 2/3" | 2464x2056 | CMOS GS | C-Mount IRC USB90 | 85fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-508c color CS-Mount open USB90 | Sony IMX250 | Color | 2/3" | 2464x2056 | CMOS GS | CS-Mount IRC USB90 | 85fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-508m mono Pol C-Mount open USB90 | Sony IMX250MZR | Mono | 2/3" | 2464x2056 | CMOS GS | C-Mount USB90 | 85fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-508m mono Pol CS-Mount open USB90 | Sony IMX250MZR | Mono | 2/3" | 2464x2056 | CMOS GS | CS-Mount USB90 | 85fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-508c color Pol C-Mount open USB90 | Sony IMX250MYR | Color | 2/3" | 2464x2056 | CMOS GS | C-Mount IRC USB90 | 85fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-508c color Pol CS-Mount open USB90 | Sony IMX250MYR | Color | 2/3" | 2464x2056 | CMOS GS | CS-Mount IRC USB90 | 85fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-510m mono C-Mount open USB90 | Sony IMX548 | Mono | 1/1.8" | 2472x2064 | CMOS GS | C-Mount USB90 | 79fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-510m mono CS-Mount open USB90 | Sony IMX548 | Mono | 1/1.8" | 2472x2064 | CMOS GS | CS-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-510m mono S-Mount open USB90 | Sony IMX548 | Mono | 1/1.8" | 2472x2064 | CMOS GS | S-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-510c color C-Mount open USB90 | Sony IMX548 | Color | 1/1.8" | 2472x2064 | CMOS GS | C-Mount IRC USB90 | 79fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-510c color CS-Mount open USB90 | Sony IMX548 | Color | 1/1.8" | 2472x2064 | CMOS GS | CS-Mount IRC USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-510c color S-Mount open USB90 | Sony IMX548 | Color | 1/1.8" | 2472x2064 | CMOS GS | S-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-511m mono C-Mount open USB90 | Sony IMX547 | Mono | 1/1.8" | 2472x2064 | CMOS GS | C-Mount USB90 | 79fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-511m mono CS-Mount open USB90 | Sony IMX547 | Mono | 1/1.8" | 2472x2064 | CMOS GS | CS-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-511m mono S-Mount open USB90 | Sony IMX547 | Mono mm 50g | 1/1.8" | 2472x2064 | CMOS GS | S-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-511c color C-Mount open USB90 | Sony IMX547 | Color | 1/1.8" | 2472x2064 | CMOS GS | C-Mount IRC USB90 | 79fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-511c color CS-Mount open USB90 | Sony IMX547 | Color | 1/1.8" | 2472x2064 | CMOS GS | CS-Mount IRC USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-511c color S-Mount open USB90 | Sony IMX547 | Color | 1/1.8" | 2472x2064 | CMOS GS | S-Mount USB90 | 79fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-811m mono C-Mount open USB90 | Sony IMX546 | Mono | 2/3" | 2848x2848 | CMOS GS | C-Mount USB90 | 51fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-811m mono CS-Mount open USB90 | Sony IMX546 | Mono | 2/3" | 2848x2848 | CMOS GS | CS-Mount USB90 | 51fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-811c color C-Mount open USB90 | Sony IMX546 | Color | 2/3" | 2848x2848 | CMOS GS | C-Mount IRC USB90 | 51fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-811c color CS-Mount open USB90 | Sony IMX546 | Color | 2/3" | 2848x2848 | CMOS GS | CS-Mount IRC USB90 | 51fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-831m mono C-Mount open USB90 | Sony IMX678 | Mono | 1/1.8" | 3840x2160 | CMOS RS | C-Mount USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-831m mono CS-Mount open USB90 | Sony IMX678 | Mono | 1/1.8" | 3840x2160 | CMOS RS | CS-Mount USB90 | 27fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-831m mono S-Mount open USB90 | Sony IMX678 | Mono | 1/1.8" | - | CMOS RS | C-Mount USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-831c color C-Mount open USB90 | Sony IMX678 | Color | 1/1.8" | 3840x2160 | CMOS RS | C-Mount IRC USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-831c color CS-Mount open USB90 | Sony IMX678 | Color | 1/1.8" | 3840x2160 | CMOS RS | CS-Mount IRC USB90 | 27fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-831c color S-Mount open USB90 | Sony IMX678 | Color | 1/1.8" | - | CMOS RS | C-Mount IRC USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-832m mono C-Mount open USB90 | Sony IMX585 | Mono | 1/1.2" | 3840x2160 | CMOS RS | C-Mount USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-832m mono CS-Mount open USB90 | Sony IMX585 | Mono | 1/1.2" | 3840x2160 | CMOS RS | CS-Mount USB90 | 27fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-832c color C-Mount open USB90 | Sony IMX585 | Color | 1/1.2" | 3840x2160 | CMOS RS | C-Mount IRC USB90 | 27fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-832c color CS-Mount open USB90 | Sony IMX585 | Color | 1/1.2" | 3840x2160 | CMOS RS | CS-Mount IRC USB90 | 27fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-895m mono C-Mount open USB90 | Sony IMX267 | Mono | 1" | 4112x2176 | CMOS GS | C-Mount USB90 | 31fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-895m mono CS-Mount open USB90 | Sony IMX267 | Mono | 1" | 4112x2176 | CMOS GS | CS-Mount USB90 | 31fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-895c color C-Mount open USB90 | Sony IMX267 | Color | 1" | 4112x2176 | CMOS GS | C-Mount IRC USB90 | 31fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-895c color CS-Mount open USB90 | Sony IMX267 | Color | 1" | 4112x2176 | CMOS GS | CS-Mount IRC USB90 | 31fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1236m mono C-Mount open USB90 | Sony IMX304 | Mono | 1.1" | 4112x3008 | CMOS GS | C-Mount USB90 | 23fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1236c color C-Mount open USB90 | Sony IMX304 | Color | 1.1" | 4112x3008 | CMOS GS | C-Mount IRC USB90 | 23fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1240m mono C-Mount open USB90 | Sony IMX226 | Mono | 1/1.7" | 4024x3036 | CMOS RS | C-Mount USB90 | 35fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1240m mono CS-Mount open USB90 | Sony IMX226 | Mono | 1/1.7" | 4024x3036 | CMOS RS | CS-Mount USB90 | 35fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1240m mono S-Mount open USB90 | Sony IMX226 | Mono | 1/1.7" | 4024x3036 | CMOS RS | S-Mount USB90 | 35fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1240c color C-Mount open USB90 | Sony IMX226 | Color | 1/1.7" | 4024x3036 | CMOS RS | C-Mount IRC USB90 | 35fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1240c color CS-Mount open USB90 | Sony IMX226 | Color | 1/1.7" | 4024x3036 | CMOS RS | CS-Mount IRC USB90 | 35fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1240c color S-Mount open USB90 | Sony IMX226 | Color | 1/1.7" | 4024x3036 | CMOS RS | S-Mount USB90 | 35fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1242m mono C-Mount open USB90 | Sony IMX545 | Mono | 1/1.1" | 4128x3008 | CMOS GS | C-Mount USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1242m mono CS-Mount open USB90 | Sony IMX545 | Mono | 1/1.1" | 4128x3008 | CMOS GS | CS-Mount USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1242c color C-Mount open USB90 | Sony IMX545 | Color | 1/1.1" | 4128x3008 | CMOS GS | C-Mount IRC USB90 | 34fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1242c color CS-Mount open USB90 | Sony IMX545 | Color | 1/1.1" | 4128x3008 | CMOS GS | CS-Mount IRC USB90 | 34fps | USB3.0 | 32x29x25mm | 50g |
| 1800 U-1620m mono C-Mount open USB90 | Sony IMX542 | Mono | 1.1" | 5312x3040 | CMOS GS | C-Mount USB90 | 26fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-1620c color C-Mount open USB90 | Sony IMX542 | Color | 1.1" | 5312x3040 | CMOS GS | C-Mount IRC USB90 | 26fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2040m mono C-Mount open USB90 | Sony IMX541 | Mono | 1.1" | 4512x4512 | CMOS GS | C-Mount USB90 | 21fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2040c color C-Mount open USB90 | Sony IMX541 | Color | 1.1" | 4512x4512 | CMOS GS | C-Mount IRC USB90 | 21fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2050m mono C-Mount open USB90 | Sony IMX183 | Mono | 1" | 5496x3672 | CMOS RS | C-Mount USB90 | 21fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2050c color C-Mount open USB90 | Sony IMX183 | Color | 1" | 5496x3672 | CMOS RS | C-Mount IRC USB90 | 21fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2460m mono C-Mount open USB90 | Sony IMX540 | Mono | 1.2" | 5328x4608 | CMOS GS | C-Mount USB90 | 17fps | USB3.0 | 32x29x30mm | 50g |
| 1800 U-2460c color C-Mount open USB90 | Sony IMX540 | Color | 1.2" | 5328x4608 | CMOS GS | C-Mount IRC USB90 | 17fps | USB3.0 | 32x29x30mm | 50g |
The RAZOR series cameras incorporate the most popular sensor resolutions with the ultimate in image performance, frame rates and economy. With scalable 1, 2 or 4 output links, RAZOR cameras offer users an easy and very cost-effective upgrade path to existing Camera Link systems.
Key Features:
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● With trigger and I/O
● Single-board cameras
Key Features:
Features:
● Reversible Type-C port connection
● Sony STARVIS and Pregius CMOS sensors
● With trigger and I/O
● Single-board cameras
