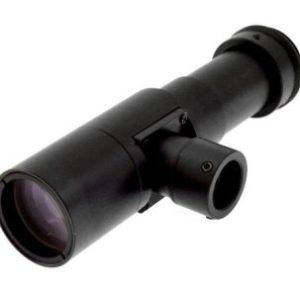

Opto Engineering – Telecentric [TCCX2M SERIES]

Opto Engineering – Telecentric [TCHR CORE PLUS SERIES]

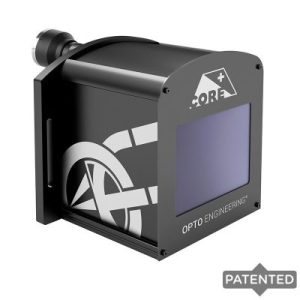

TCHR CORE PLUS are large FOV telecentric lenses for the latest generation sensors up to 1.1” like the IMX304 and 4/3” sensors like the IMX387. They are specifically designed to accurately inspect large objects in a reduced space.

Inspired by catadioptric telescopes, their folded optical path allows large FOV imaging while keeping the overall footprint compact. The size reduction is up to 45% compared with other telecentric lenses on the market.

The length and working distance of a telecentric lens strongly impact the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall dimensions of the system are doubled. For this reason, the working distance of TCHR CORE PLUS series has been reduced to make the vision system as compact as possible.

Opto Engineering – Telecentric [TC4MHR CORE SERIES]

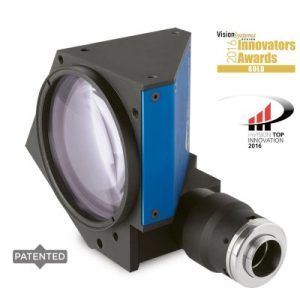

TC4MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 4/3”. TC4MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Our compact telecentric lenses can be mounted in several orientations thanks to the M6 threads located on multiple sides, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

Opto Engineering – Telecentric [TC3MHR CORE SERIES]

TC3MHR CORE series is a range of ultra-compact telecentric lenses tailored for high-resolution sensors up to 1.1”. TC3MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, low F#, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads located on multiple sides Opto Engineering® TC3MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

Opto Engineering – Telecentric [TC2MHR CORE SERIES]

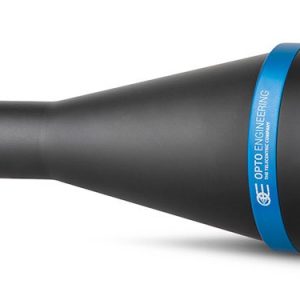

TC2MHR CORE series features ultra-compact telecentric lenses tailored for high-resolution sensors up to 1”. TC2MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Opto Engineering – Telecentric [TC1MHR CORE SERIES]

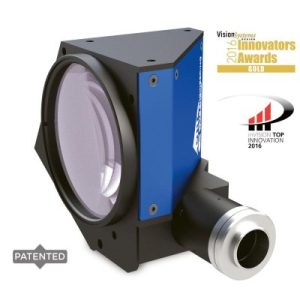

TC1MHR CORE series is a range of ultra-compact telecentric lenses tailored for high-resolution sensors up to 1/1.2”. TC1MHR CORE lenses deliver excellent optical performances in a super compact shape. Thanks to the unique opto-mechanical design, these lenses offer very high resolution, low F#, nearly zero distortion and high depth of field while saving up to 70% in length compared to similar FOV lenses on the market.

Thanks to the M6 threads located on multiple sides Opto Engineering® TC1MHR CORE lenses can be mounted in several orientations, even without clamping mechanics. For maximum flexibility, a special front mounting clamp is also available.

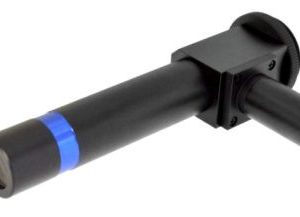

Opto Engineering – Telecentric [TCCXHM SERIES]

Opto Engineering – Telecentric [TCCX SERIES]

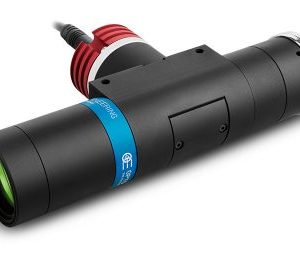

TCCX series is a range of lenses designed for measurement and defect detection on flat surfaces. They feature the same magnifications and working distance of TCLWD series while adding integrated coaxial light.

Such lighting configuration is required to homogeneously illuminate uneven surfaces and detect small surface defects such as scratches or grooves, finding application in many industries, from the electronics and semiconductor industries to the glass and metal fabrication industries.

All these lenses operate at a working distance of 132 mm while their large numerical aperture enables the superior resolution needed for small pixel cameras, matching and even exceeding the industrial requirements of on- and offline applications.

The built-in LED source, equipped with advanced electronics, provides excellent illumination stability and homogeneity, key factors for the reliability of any machine vision system.

The unique optical design minimizes the internal reflection issues of conventional coaxial illumination systems: this makes TCCX lenses the perfect choice especially when inspecting highly reflective flat surfaces (approx. > 30% reflectance).

Typical application include recognition of silicon wafers pattern and inspection of LCD displays, polished metal surfaces, plastic and glass panels, and many other.

Note: for opaque samples (reflectance <30%) please refer to TCCXQ Series

Opto Engineering – Telecentric [TC CORE PLUS SERIES]

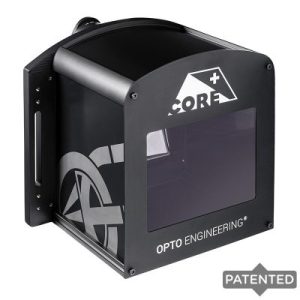

TC CORE PLUS series is a range of large FOV telecentric lenses for area scan cameras, specifically designed for the latest generation 1/1.8” and 2/3” CMOS sensors. Their opto-mechanical design is ideal to inspect large objects in a reduced space.

The lenses from the TC CORE PLUS series are up to 45% shorter than other telecentric lenses available on the market.

Their patented optical design, inspired by catadioptric telescopes, allows for large FOV imaging while keeping the overall footprint compact.

The length and working distance of a telecentric lens strongly impacts the size of a vision system. This is especially critical when a large FOV telecentric lens is used with a telecentric illuminator, as the overall system dimensions are doubled. For this reason, the working distance of TC CORE PLUS lenses has been optimized to make the vision system as compact as possible. TC CORE PLUS lenses feature a built-in mounting flange for easy mounting without additional clamps, making their integration easy and cost-effective.

Opto Engineering – Telecentric [TC CORE SERIES]

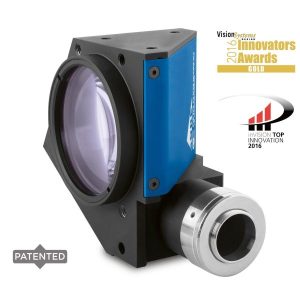

TC CORE bi-telecentric lenses for sensors up to 2/3” feature a truly revolutionary ultra compact opto-mechanical design.

These lenses deliver high-end optical performances and at the same time are up to 70% smaller than other double-sided telecentric lenses on the market, thus allowing to significantly downsize a vision system.
The unique shape has been expressly developed for maximum mounting flexibility.

TC CORE lenses can be mounted in different directions using any of the 4 sides even without clamps, allowing you to cut the system’s cost, and can be easily fitted or retrofitted even into very compact machines.

TC CORE bi-telecentric lenses can also be coupled with the new ultra compact LTCLHP CORE series telecentric illuminators to build super small yet extremely accurate measurement systems.

Opto Engineering – Telecentric [TC12M SERIES]

TC12M series features high-resolution telecentric lenses for sensors with an image circle up to 33.5 mm. They perfectly fit cameras with large sensors, up to APS-H format.

TC12M series lenses feature a compact and robust design that makes them ideal for various industrial applications.

Opto Engineering – Telecentric [TC10M SERIES]

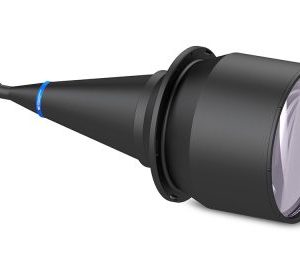

TC10M series features high-resolution telecentric optics with an image circle of 28 mm that perfectly fit cameras with large sensors, up to APS-C format. These lenses also feature a compact and robust design that is suitable for industrial environments.

Their excellent optical performance and high resolution make them ideal for several applications such as flat panel display checks, high-precision measurement of mechanical parts, semiconductor and electronics inspection.

Opto Engineering – Telecentric [TCVLWD3M SERIES]

TCLWD3M series is a range of high resolution telecentric lenses specifically designed for electronic and semiconductor Automated Optical Inspection (AOI) and tool pre-setting machines. The long working distance allows for extra space, which is essential if you need to install illumination, pick-up tools or provide the necessary separation from hazardous production processes.
TCLWD3M lenses have been optimized to match up to the new 1.1” Sony sensor in order to deliver high resolution and superb image quality.

In addition to the long working distance, TCLWD3M optics deliver a numerical aperture large enough to take advantage of high resolution / small pixel size cameras, making these lenses a perfect match for general-purpose 2D measurement systems.

Opto Engineering – Telecentric [TC4MHR SERIES]

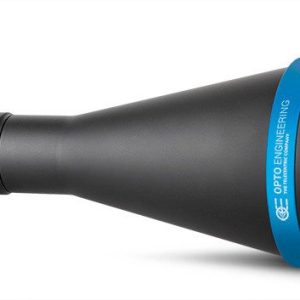

TC4MHR series features high-resolution telecentric lenses designed for sensors up to 4/3′′ and is the perfect choice for advanced metrology applications. Our TC4MHR series ensures unmatched resolution, low distortion and homogeneous image quality while offering the best performance-to-price ratio.

TC4MHR lenses feature a compact and robust design that allows easy integration in industrial environments. Additionally, the set screws positioned in the eyepiece allow to easily adjust the camera phase.

Opto Engineering – Telecentric [TC3MHR Series]

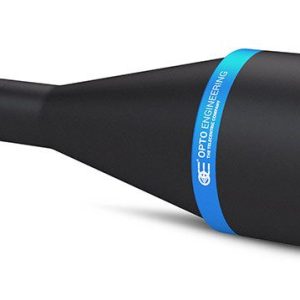

TC3MHR series features high-resolution telecentric lenses designed for sensors up to 1.1″ and is the perfect choice for advanced metrology applications. Our TC3MHR series delivers unmatched resolution thanks to the low F# as well as low distortion and homogeneous image quality while offering the best performance-to-price ratio.

The compact and robust design of TC3MHR lenses allows easy integration in industrial environments. Additionally, the camera phase can be easily adjusted by simply loosening the set screws positioned in the eyepiece.

Opto Engineering – Telecentric [TC2HMR Series]

TC2MHR series features high-resolution telecentric lenses designed for sensors up to 1″ and is the perfect choice for advanced metrology applications. Our TC2MHR series ensures unmatched resolution, low distortion and homogeneous image quality while offering the best performance-to-price ratio.

Thanks to their compact and robust design, TC2MHR lenses can be easily integrated in industrial environments. Additionally, the set screws positioned in the eyepiece allow to easily adjust the camera phase.

Opto Engineering – Telecentric [TC1MHR SERIES]

TC1MHR series features high-resolution telecentric lenses designed for sensors up to 1/1.2” and is the perfect choice for advanced metrology applications. Our TC1MHR series delivers unmatched resolution thanks to the low F# as well as low distortion and homogeneous image quality while offering the best performance-to-price ratio.

TC1MHR lenses feature a compact and robust design that allows easy integration in industrial environments. Additionally, the camera phase can be easily adjusted by simply loosening the set screws positioned in the eyepiece.

Opto Engineering – Telecentric [TCVLWD SERIES]

Opto Engineering – Telecentric Lens [TCHM SERIES]

Opto Engineering – Telecentric [TCLWD SERIES]

TCLWD is a range of telecentric lenses specifically designed for electronic and semiconductor Automated Optical Inspection (AOI) and tool presetting machines.

All these lenses feature a working distance of 132 mm while ensuring excellent optical resolution, high telecentricity and low distortion, thus matching and even exceeding the industrial requirements for the target applications.

The long working distance allows for extra space, which is essential if you need to install illumination, pick-up tools or provide the necessary separation from hazardous production processes.

In addition to the long working distance, TCLWD optics deliver a numerical aperture large enough to take advantage of high resolution / small pixel size cameras, making these lenses a perfect match for general-purpose 2D measurement systems.

Opto Engineering – Telecentric [TC Series]

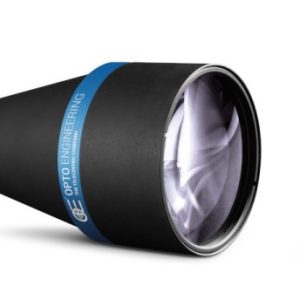

TC series bi-telecentric lenses represent the key component of any measurement system powered by machine vision: these lenses can truly take advantage of high-resolution sensors such as 5 MP – 2/3″

The Opto Engineering® bi-telecentric design makes these optics truly telecentric: no magnification change occurs when an object is moved closer to or away from the lens, making the TC series ideal for measurement applications of mechanical parts ranging from extruded aluminum profiles to tiny clock gears.

No other lenses can offer the same optical performances in terms of telecentrity and distortion: additionally, you can further enhance the depth of field and optical accuracy by pairing our TC lenses with LTCLHP telecentric illuminators. All of our TC lenses are rigorously tested and supplied with a detailed Test Report: we guarantee that 100% of our TC lenses meet or exceed our written specifications.

The Opto Engineering® TC series offers the best performance-to-price ratio available today and is the ideal choice when no compromise can be accepted in terms of reliability and ease of use. Additionally, we supply useful accessories including CMHO clamping mechanics and CMPT mounting plates: mechanical support systems for easy integration in industrial environments, where a solid and secure assembly is required.
