Product Catalog
The expertise of Kenko Tokina dedicated to optics and optical filters for consumer and broadcast cameras has been based upon unique experience in designing and manufacturing products of highest quality and performance. Utilizing the expertise, we integrate our own innovative elements into industrial field providing extraordinary products with top specifications at affordable prices.
| KCM-05-65SR | KCM-05D-65SR | KCM-1-75SR | KCM-1D-75SR | KCM-2-65SR | KCM-2D-65SR | KCM-4-65SR | KCM-4D-65SR | KCM-1-110SR | KCM-1D-110SR | KCM-2-110SR | KCM-2D-110SR | KCM-4-110SR | KCM-4D-110SR | |
| Magnification | 0.5 | 0.5 | 1 | 1 | 2 | 2 | 4 | 4 | 1 | 1 | 2 | 2 | 4 | 4 |
| O/I (mm) (Object to image distance) | 211.7 | 211.7 | 174.9 | 174.9 | 167 | 167 | 237.6 | 237.6 | 258.1 | 258.1 | ||||
| Working Distance (mm) | 65 | 65 | 75 | 75 | 65 | 65 | 65 | 65 | 110 | 110 | 110 | 110 | 110 | 110 |
| D.O.F. (μ) | 360 | 360 | 710 | 710 | 180 | 180 | 710 | 710 | 180 | 180 | ||||
| Resolution (μ) | 8.39 | 8.39 | 6.1 | 6.1 | 3.05 | 3.05 | 6.1 | 6.1 | 3.05 | 3.05 | ||||
| Working F No | 6.3 | 6.3 | 9.4 | 9.4 | 9.1 | 9.1 | 9.3 | 9.3 | 9.1 | 9.1 | ||||
| NA | 0.04 | 0.04 | 0.055 | 0.055 | 0.11 | 0.11 | 0.055 | 0.055 | 0.11 | 0.11 | ||||
| Dimensions (L) mm | 129.1 | 129.1 | 81.7 | 81.7 | 87.4 | 87.4 | 97.4 | 97.4 | 110 | 110 | 129.6 | 129.6 | 130.8 | 130.8 |
| Weight (g) | 170 | 180 | 90 | 100 | 90 | 100 | 100 | 110 | 120 | 130 | 160 | 170 | 170 | 180 |
| Sensor Size (max.~) “ | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 |
| Resolution (Megapixel) | 5 | 5 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| Pixel Size (μm) | 3.6 | 3.6 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |

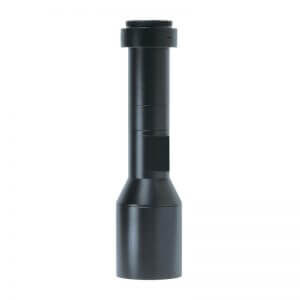

| KCM-1-65C | KCM-1D-65C | KCM-2-65C | KCM-2D-65C | KCM-4-65C | KCM-4D-65C | KCM-1-110C | KCM-1D-110C | KCM-2-110C | KCM-2D-110C | KCM-4-110C | KCM-4D-110C | |
| Magnification | 1 | 1 | 2 | 2 | 4 | 4 | 1 | 1 | 2 | 2 | 4 | 4 |
| O/I (mm) (Object to image distance) | 177.7 | 177.7 | 145.4 | 145.4 | 210 | 210 | 213.6 | 213.6 | ||||
| Working Distance (mm) | 65 | 65 | 64.8 | 64.8 | 64.8 | 64.8 | 110 | 110 | 110 | 110 | 110 | 110 |
| D.O.F. (μ) | 1140 | 1140 | 300 | 300 | 1600 | 1600 | 490 | 490 | ||||
| Resolution (μ) | 9.6 | 9.6 | 5.1 | 5.1 | 13.4 | 13.4 | 8.4 | 8.4 | ||||
| Working F No | 14.2 | 14.2 | 15 | 15 | 20 | 20 | 24.6 | 24.6 | ||||
| NA | 0.035 | 0.035 | 0.066 | 0.066 | 0.025 | 0.025 | 0.04 | 0.04 | ||||
| TV Distortion (%) | 0.11 | 0.11 | -0.03 | -0.03 | 0.06 | 0.06 | -0.03 | -0.03 | ||||
| Dimensions (L) mm | 95.2 | 95.2 | 63.1 | 63.1 | 76.5mm | 76.5mm | 82.55 | 82.55 | 86.1 | 86.1 | 91.12mm | 91.12mm |
| Weight (g) | 60 | 69 | 37 | 46 | 40 | 40 | 55 | 64 | 42 | 52 | 45 | 45 |
| Sensor Size (max.~) “ | 1/2 | 1/2 | 2/3 | 2/3 | 1/2 | 1/2 | 2/3 | 2/3 |
| TFM-100 | |
| Focal Length (mm) | 100mm Fixed |
| Image Format (Inch) | φ43mm |
| Angle of View (HxV) | 24.5° |
| Aperture (F) | 2.8 — 32 |
| Mount | F |
| M.O.D. (m) | 0.3 |
| Filter Size | M55mm P=0.75 |
| Dimensions (φ) mm | 70 |
| Dimensions (L) mm | 95 |
| Iris Control | Manual |
| Focus Control | Manual |
| Back Focal Length (mm) | 44.18 |
| Operating Temperature (°C ~ ) | |
| Weight (g) | 514 |
| TVR1426HDIR | |
| Focal Length (mm) | 14 — 50 |
| Image Format (Inch) | 1″ |
| Resolution (Megapixel) | 8 |

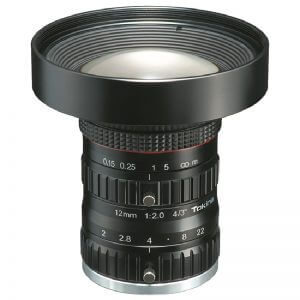

| TC1220-12MP | TC1620-12MP | TC2520-12MP | TC3520-12MP | TC5020-12MP | |
| Focal Length (mm) | 12 | 16 | 25 | 35 | 50 |
| Image Format (Inch) | 4/3″ | 4/3″ | 4/3″ | 4/3″ | 4/3″ |
| Resolution (Megapixel) | 12 | 12 | 12 | 12 | 12 |
| Pixel Size (μm) | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 |
| Aperture (F) | 2.0 — 22 | 2.0 — 22 | 2.0 — 22 | 2.0 — 22 | 2.0 — 22 |
| Angle of View | 75.46° x 61.08° | 44.2 x 33.5° | 40.6° x 31° | 29.6° x 22.4° | 20.9° x 15.7° |
| Mount | C | C | C | C | C |
| M.O.D. (m) | 0.15 | 0.1 | 0.15 | 0.2 | 0.3 |
| Filter Size | M77mm P=0.75 | M58mm P=0.75 | M46mm P=0.75 | M40.5mm P=0.5 | M40.5mm P=0.5 |
| Dimensions (φ) mm | 80 | 59.8 | 48 | 44.6 | 44.6 |
| Dimensions (L) mm | 84.4 | 85.9 | 82.7 | 54.9 | 53.7 |
| Iris Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 18.93 | 21 | 22.43 | 18.65 | 20.29 |
| Operating Temperature (°C ~ ) | -10 — +50 | ||||
| Weight (g) | 447 | 338 | 250 | 173 | 170 |

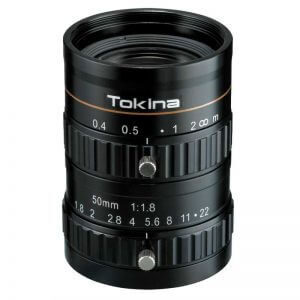

| TC5018-10MP | TC7520-10MP | |
| Focal Length (mm) | 50 | 75 |
| Image Format (Inch) | 1″ | 1″ |
| Resolution (Megapixel) | 10 | 10 |
| Pixel Size (μm) | 3.4 | 3.4 |
| Aperture (F) | 1.8 — 22 | 2.0 — 22 |
| Angle of View | 14.5° x 10.8° | 9.7° x 7.3° |
| Mount | C | C |
| M.O.D. (m) | 0.2 | 0.9 |
| Filter Size | M37.5mm P=0.5 | M40.5mm P=0.5 |
| Dimensions (φ) mm | 43.2 | 45 |
| Dimensions (L) mm | 58.5 | 71.7 |
| Iris Control | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 13.63 | 13.76 |
| Operating Temperature (°C ~ ) | ||
| Weight (g) | 173 | 223 |

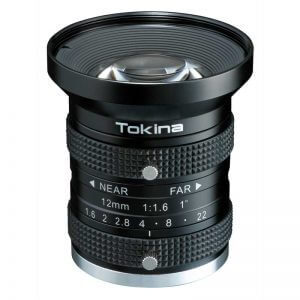

| TC1216-5MP | TC1616-5MP | TC2016-5MP | TC2516-5MP | TC3514-5MP | |
| Focal Length (mm) | 12 | 16 | 20 | 25 | 35 |
| Image Format (Inch) | 1″ | 1″ | 1″ | 1″ | 1″ |
| Resolution (Megapixel) | 5 | 5 | 5 | 5 | 5 |
| Pixel Size (μm) | 5 | 5 | 5 | 5 | 5 |
| Aperture (F) | 1.6 — 22 | 1.6 — 22 | 1.6 — 22 | 1.6 — 22 | 1.4 — 22 |
| Angle of View | 57.1° x 44.1° | 44.2 x 33.5° | 36.1° x 27.2° | 29° x 21.8° | 20.7° x 15.6° |
| Mount | C | C | C | C | C |
| M.O.D. (m) | 0.2 | 0.35 | 0.45 | 0.45 | 0.45 |
| Filter Size | M52mm P=0.75 | M37.5mm P=0.5 | M39mm P=0.5 | M39mm P=0.5 | M39mm P=0.5 |
| Dimensions (φ) mm | 54 | 43.9 | 43.9 | 43.9 | 43.9 |
| Dimensions (L) mm | 60.4 | 57.8 | 54.95 | 51.38 | 48.96 |
| Iris Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 13.54 | 12.17 | 12.19 | 12.69 | 12.83 |
| Operating Temperature (°C ~ ) | -10 — +50 | ||||
| Weight (g) | 185 | 201 | 163 | 157 | 154 |

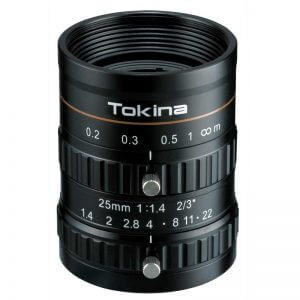

| TC0816-10MP | TC1216-10MP | TC1616-10MP | TC2514-10MP | TC3514-10MP | |
| Focal Length (mm) | 8 | 12 | 16 | 25 | 35 |
| Image Format (Inch) | 2/3″ | 2/3″ | 2/3″ | 2/3″ | 2/3″ |
| Resolution (Megapixel) | 10 | 10 | 10 | 10 | 10 |
| Pixel Size (μm) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| Aperture (F) | 1.6 — 22 | 1.6 — 22 | 1.6 — 22 | 1.4 — 16 | 1.4 — 22 |
| Angle of View | 55.8° x 43.3° | 39.8° x 30.4° | 30.8° x 23.4° | 30.46° x 23.07° | 20° x 15° |
| Mount | C | C | C | C | C |
| M.O.D. (m) | 0.15 | 0.1 | 0.2 | 0.1 | 0.2 |
| Filter Size | M40.5mm P=0.5 | M37.5mm P=0.5 | M37.5mm P=0.5 | M37.5mm P=0.5 | M37.5mm P=0.5 |
| Dimensions (φ) mm | 45 | 43.2 | 43.2 | 30 | 43.2 |
| Dimensions (L) mm | 53 | 58.5 | 63.3 | 43 | 54.5 |
| Iris Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 12.44 | 12.42 | 12.36 | 11.75 | 12.78 |
| Operating Temperature (°C ~ ) | -10 — +50 | ||||
| Weight (g) | 170 | 178 | 181 | 70 | 148 |

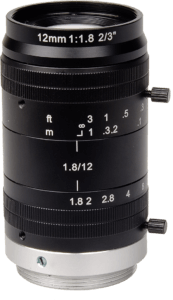

| TC1218-8MP | TC2518-8MP | TC3520-8MP | TC5024-8MP | |
| Focal Length (mm) | 12 | 25 | 35 | 50 |
| Image Format (Inch) | 2/3″ | 2/3″ | 2/3″ | 2/3″ |
| Resolution (Megapixel) | 8 | 8 | 8 | 8 |
| Pixel Size (μm) | 2.74 | 4.4 | 2.74 | 2.74 |
| Aperture (F) | 1.8 — 22 | 1.8 — 22 | 2.0 — 22 | 2.4 — 22 |
| Angle of View | 40.85° x 31° | 20.1° x 15.1° | 11.96° x 9.07° | 8.2° x 6.36° |
| Mount | C | C | C | C |
| M.O.D. (m) | 0.06 | 0.13 | 0.18 | 0.25 |
| Filter Size | M25.5mm P=0.5 | M25.5mm P=0.5 | M25.5mm P=0.5 | M30.5mm P=0.5 |
| Dimensions (φ) mm | 30 | 30 | 30 | 36 |
| Dimensions (L) mm | 50.4 | 48.3 | 43.47 | 47.5 |
| Iris Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 17.526 | 17.526 | 17.526 | 17.526 |
| Operating Temperature (°C ~ ) | ||||
| Weight (g) | 80 | 70 | 80 | 90 |

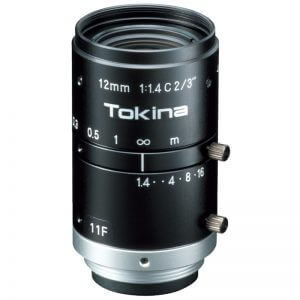

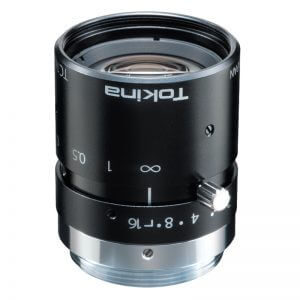

| TC0814-3MPG | TC1214-3MPG | TC1614-3MPG | |
| Focal Length (mm) | 8 | 12 | 16 |
| Image Format (Inch) | 2/3″ | 2/3″ | 2/3″ |
| Resolution (Megapixel) | 3 | 3 | 3 |
| Pixel Size (μm) | 4.4 | 4.4 | 4.4 |
| Aperture (F) | 1.4-16 | 1.4 — 16 | 1.4 — 16 |
| Angle of View | 57.3° x 44.3° | 39.6° x 30.2° | 30.46° x 23.07° |
| Mount | C | C | C |
| M.O.D. (m) | 0.1 | 0.1 | 0.1 |
| Filter Size | M27mm P=0.5 | M27mm P=0.5 | M27mm P=0.5 |
| Dimensions (φ) mm | 30 | 30 | 30 |
| Dimensions (L) mm | 47.5 | 47.5 | 43 |
| Iris Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Focus Control | Manual with Locking screw | Manual with Locking screw | Manual with Locking screw |
| Back Focal Length (mm) | 11.46 | 11.7 | 11.75 |
| Operating Temperature (°C ~ ) | |||
| Weight (g) | 75 | 80 | 70 |
