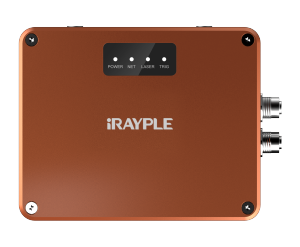

iRayple - JM Vistec System

Features:

Built-in algorithm supports high-precision volume measurement and 3D object location;
Small dimension and high integration make better cost performance and smaller
installation space;
Speckle-module illumination makes light uniform and reliable;
Excellent filter design depressed light from environment;
4 indicators are used to debug and function display;
Industrial-grade M12 connector, IP65 protection level;
Support multi-cameras cascade;

Product Model:

Product Model	Resolution	Sensor	Pixel Size	Mono/Color
DS5131MG30CE	1280×960	1/3″，CMOS	3.75×3.75
DS5131MG30CE	1288×1032	1/2.7″，CMOS	4.0×4.0

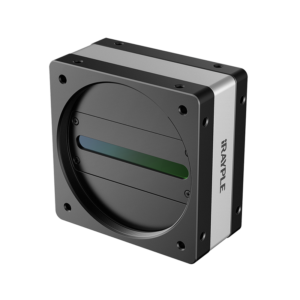

iRayple Line Scan Camera

Features:

Rich variety and clear image
Wide voltage input, stable operation
High resolution and high line rate
Modular design, compact structure

Product Model:

Product Model	Resolution	Line Rate	Sensor	Pixel Size	Port
L5027MG400E	2048 × 4	59 kHz	2K	7 × 7	GigE
L5082MK170E	8192 × 1	74 kHz	8 K	7 × 7	CameraLink
L5047MK140E	4096 × 2	120 kHz	4K	7 × 7	CameraLink
L5047CK140E	4096 × 2	62 kHz	4K	7 × 7	CameraLink
L5087CK670E	8192 × 6	34 kHz	8 K	5 × 5	CameraLink
L5087MK470E	8192 × 4	100 kHz	8 K	5 × 5	CameraLink
L5027CG140E	2048 × 2	49 kHz	2K	14 × 14	GigE
L5047CG140E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5042MG141E	4096 × 1	28 kHz	4K	7 × 7	GigE
L5022CG141E	2048 × 2	49 kHz	2K	14 × 14	GigE
L5042CG141E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5022MG141E	2048 × 1	49 kHz	2K	14 × 14	GigE
L5027MG140E	2048 × 1	49 kHz	2K	14 × 14	GigE
L5047MG140E	4096 × 2	28 kHz	4K	7 × 7	GigE
L5082MG170E	8192 × 1	13 kHz	8 K	7 × 7	GigE

iRayple Area Scan Camera – Broad-Level Series

Features:

Outstanding image quality and details
Compact size and easy for integration
High resolution and frame rate
Powerful performance and perfect function

Product Model:

Product Model	Resolution	Frame Rate	Port	Sensor	Pixel Size
AB5131CU000E	1280 × 1024	208 fps	USB3.0	PYTHON 1300	4.8 × 4.8
AB5131MU000E	1280 × 1024	208 fps	USB3.0	PYTHON 1300	4.8 × 4.8
AB3600MU000E	3072 × 2048	60 fps	USB3.0	IMX178	2.4 × 2.4
AB3600CU000E	3072 × 2048	60 fps	USB3.0	IMX178	2.4 × 2.4
AB3A20MU000E	4000 × 3000	30 fps	USB3.0	IMX226	1.85 × 1.85
AB3A20CU000E	4000 × 3000	30 fps	USB3.0	IMX226	1.85 × 1.85
AB3138MU000E	1280 × 1024	201 fps	USB3.0	SS	4.0 × 4.0
AB3138CU000E	1280 × 1024	201 fps	USB 3.0	SS	4.0 × 4.0
AB3600CU010E	3072 × 2048	60 fps	USB3.0	IMX178	2.4 × 2.4
AB3600MG000E	3072 × 2048	18 fps	GigE	IMX178	2.4 × 2.4

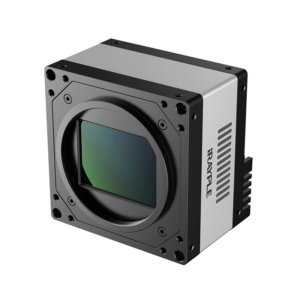

iRayple Area Scan Camera – Large Area Scan Series

Features:

Outstanding image quality and details
Compact size and easy for integration
High resolution and frame rate
Powerful performance and perfect function

Product Model:

Product Model	Resolution	Frame Rate	Port	Sensor	Pixel Size	Mono/Color
AX5E07CG250E	9344 x 5000	2.6 fps	GigE	Customized	3.2 μm x 3.2 μm
AX5F57CG250E	9344 x 7000	1.7 fps	GigE	GMAX3265	3.2 x 3.2
AX7Q10MX770E	14192 x 10640	6.2 fps	CXP-6	IMX411	3.76 μm x 3.76 μm
AX5A22CP050E	4096 × 3072	330 fps	CXP-12	CMV12000	5.5 μm × 5.5 μm
AX5F57MX250E	9344 x 7000	31 fps	CXP-6	GMAX3265	3.2 μm x 3.2 μm
A9B57MP340E	5120 × 5120	150 fps	CXP-12	GMAX0505	2.5 × 2.5
AX5B57MT250E	5120 x 5120	41 fps	10GigE	GMAX0505	2.5 μm x 2.5 μm
AX7Q10CX470E	14192 × 10640	6.1 fps	CXP-6	IMX411	3.76 μm × 3.76 μm
AX5A22MP050E	4096 × 3072	330 fps	CXP-12	CMV12000	5.5 μm × 5.5 μm
AX7Q10MX470E	14192 x 10640	6.1 fps	CXP-6	IMX411	3.76 μm x 3.76 μm
AX7A20MT250E	4096 × 3000	68 fps	10GigE	IMX253	3.45 μm × 3.45 μm
AX5B57CT250E	5120 x 5120	41 fps	10GigE	GMAX0505	2.5 μm x 2.5 μm
AX5F57CX250E	9344 × 7000	31 fps	CXP-6	GMAX3265	3.2 μm × 3.2 μm
AX5F57CT250E	9344 × 7000	17.4 fps	10GigE	GMAX3265	3.2 μm × 3.2 μm
AX5B17MP050E	5120 × 4096	219 fps	C×P-12	GSPRINT4521	4.5 μm × 4.5 μm
AX5E07CX250E	9344 × 5000	44 fps	CXP-6	Customize	3.2 μm × 3.2 μm
AX7Q10CX770E	14192 × 10640	6.2 fps	C×P-6	IM×411	3.76 μm × 3.76 μm
AX5B51MG051E	5120 × 5120	4 fps	GigE	PYTHON 25K	4.5 μm × 4.5 μm
A9B57MX701E	5120 × 5120	42 fps	CXP-6	GMAX0505	2.5 μm × 2.5 μm
AX5B51CG051E	5120 x 5120	4 fps	GigE	PYTHON 25K	4.5 μm x 4.5 μm
AX5E07CK250E	9280 × 4992	17.5 fps	CameraLink	customization	3.2 × 3.2
AX5E07MG250E	9344 × 5000	2.6 fps	GigE	Customized	3.2 μm × 3.2 μm
AX5E07MK250E	9280 × 4992	17.5 fps	CameraLink	customization	3.2 × 3.2
AX5F57CK250E	9280 × 6992	12.5 fps	CameraLink	GMAX3265	3.2 × 3.2
AX5F57CP050E	9344 × 7000	71 fps	CXP-12	GMAX3265	3.2 μm × 3.2 μm
AX5F57MG250E	9344 × 7000	1.7 fps	GigE	GMAX3265	3.2 μm × 3.2 μm
AX5F57MK250E	9280 × 6992	12.5 fps	CameraLink	GMAX3265	3.2 × 3.2
AX5F57MP050E	9344 x 7000	71 fps	CXP-12	GMAX3265	3.2 μm x 3.2 μm
AX5F57MT250E	9344 × 7000	17.4 fps	10GigE	GMAX3265	3.2 μm × 3.2 μm
AX5E07MX250E	9344 x 5000	44 fps	CXP-6	Customize	3.2 μm x 3.2 μm
AX5B51CT250E	5120 × 5120	43 fps	10GigE	PYTHON 25K	4.5 μm × 4.5 μm
AX5B51MT250E	5120 × 5120	43 fps	10GigE	PYTHON 25K	4.5 μm × 4.5 μm
AX5A22CX050E	4096 × 3072	188 fps	CXP-6	CMV12000	5.5 × 5.5
AX5A22CX060E	4096 × 3072	188 fps	CXP-6	CMV12000	5.5 × 5.5
AX5A22CX340E	4096 × 3072	188 fps	CXP-6	CMV12000	5.5 × 5.5
AX5A22MX060E	4096 × 3072	188 fps	CXP-6	CMV12000	5.5 × 5.5	iRayple Area Scan Camera – 7000 Series Features: Outstanding image quality and details Compact size and easy for integration High resolution and frame rate Powerful performance and perfect function\ iRayple Area Scan Camera – 5000 Series Features: Outstanding image quality and details Compact size and easy for integration High resolution and frame rate Powerful performance and perfect function iRayple Area Scan Camera – 3000 Series Features: Outstanding image quality and details Compact size and easy for integration High resolution and frame rate Powerful performance and perfect function Contact Us +65 6748 5517 info@jm-vistec.com 10 Kaki Bukit Ave 1, #07-06, Singapore 417942 GET TO KNOW US About JMVS Solutions Knowledge Centre Download Center News Career Contact Products 01. INDUSTRIAL CAMERAS 02. INDUSTRIAL LENS 03. INDUSTRIAL LIGHTING 04. LIGHTING CONTROLLER 05. LENS CONTROLLER 06. FRAME GRABBER 07. 3D CAMERA SYSTEM 08. DIGITAL MICROSCOPE 09. DEEP LEARNING – AI 10. INDUSTRIAL PC 11. INDUSTRIAL MOUNTING 12. IMAGE PROCESSING SOFTWARE 13. SENSOR 14. CABLES Follow Us Copyright © 2022 JM Vistec System Products 01. INDUSTRIAL CAMERAS SVS Vistek Allied Vision Zebra Technologies Focatek iRayple Opto Engineering The Imaging Source Lucid Mikrotron ISVI I-tek Xenics Imi Tech Emberion 02. INDUSTRIAL LENS Schneider-Kreuznach Carl Zeiss Opto Engineering Kenko Tokina Myutron Kowa 03. INDUSTRIAL LIGHTING Smart Vision Lights Vislight 04. LIGHTING CONTROLLER Gardasoft Vislight 05. LENS CONTROLLER Optotune 06. FRAME GRABBER Zebra Technologies Kaya Instruments Advantech Bitflow 07. 3D CAMERA SYSTEM Mech-Mind Percipio 08. DIGITAL MICROSCOPE Opto GmbH 09. DEEP LEARNING – AI Neurocle 10. INDUSTRIAL PC Zebra Technologies Lex System 11. INDUSTRIAL MOUNTING Swivellink 12. IMAGE PROCESSING SOFTWARE Matrox Imaging 13. SENSOR Canon 14. CABLES Alysium Nortech Solutions Download Center News Career About Us Contact
